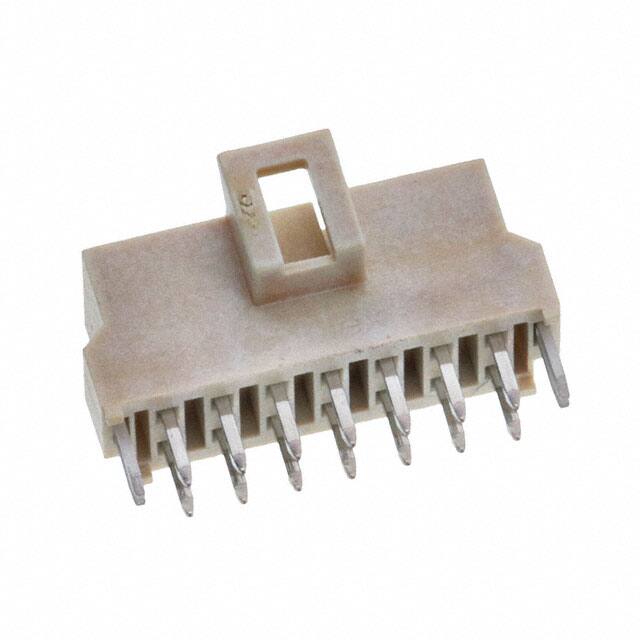

1053122314

Specifications

Contact Type

Male Pin

Pozisyon Sayısı

14

Number Of Positions Loaded

All

Sıra Sayısı

2

Stack Height Mating

21.30mm

Ambalaj

Tray

Çalışma Sıcaklığı

-40°C~105°C

Contact Length Post

0.126 3.20mm

Style

Board to Cable/Wire

Connector Type

Header

Contact Finish Thickness Mating

30.0μin 0.76μm

Contact Finish Mating

Gold

Contact Finish Post

Tin

Kurşunsuz Kodu

yes

Yayın Yılı

2016

Fabrika Tedarik Süresi

10 Weeks

Insulation Height

0.356 9.05mm

Row Spacing Mating

0.098 (2.50mm)

Contact Finish Thickness Post

59.0μin 1.50μm

Fastening Type

Latch Holder

Nominal Gerilim

250V

Insulation Materials

Liquid Crystal Polymer (LCP)

Parça Durumu

Active

RoHS Durumu

ROHS3 Compliant

Pitch Mating

0.098 2.50mm

Applications

Automotive, General Purpose, Industrial, Medical, Military, Telecommunications

Seri

Nano-Fit 105312

Özellikler

Board Lock

Terminal

Solder

Nem Hassasiyeti (MSL)

Not Applicable

Shrouding

Shrouded - 4 Wall

Contact Shape

Square

Montaj Tipi

Through Hole

Insulation Color

Natural

Contact Materials

Brass
