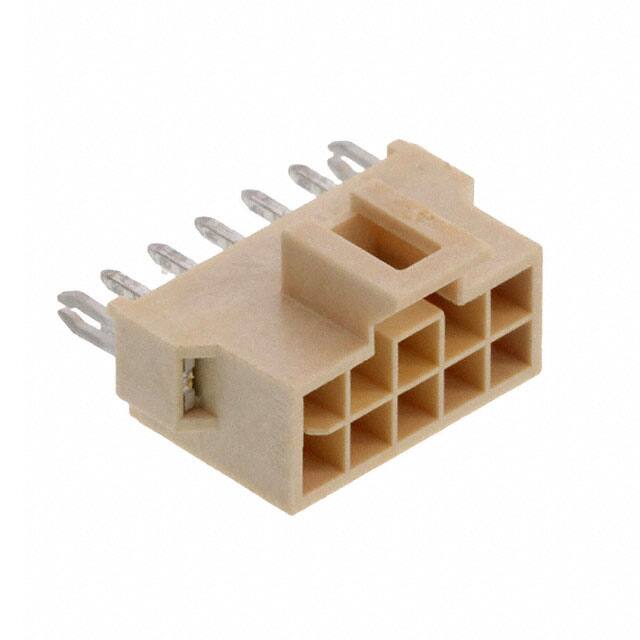

1053122310

Specifications

Özellikler

Board Lock

Insulation Color

Natural

Montaj Tipi

Through Hole

Contact Shape

Square

Shrouding

Shrouded - 4 Wall

HTS Kodu

8536.69.40.30

Contact Materials

Brass

Terminal

Solder

Nem Hassasiyeti (MSL)

Not Applicable

ECCN Kodu

EAR99

Insulation Materials

Liquid Crystal Polymer (LCP)

Parça Durumu

Active

Nominal Gerilim

250V

Fastening Type

Latch Holder

Row Spacing Mating

0.098 (2.50mm)

Contact Finish Thickness Post

59.0μin 1.50μm

Seri

Nano-Fit 105312

Pitch Mating

0.098 2.50mm

Applications

Automotive, General Purpose, Industrial, Medical, Military, Telecommunications

RoHS Durumu

ROHS3 Compliant

Contact Finish Post

Tin

Contact Finish Mating

Gold

Connector Type

Header

Contact Finish Thickness Mating

30.0μin 0.76μm

Fabrika Tedarik Süresi

10 Weeks

Insulation Height

0.356 9.05mm

Yayın Yılı

2016

Stack Height Mating

21.30mm

Pozisyon Sayısı

10

Number Of Positions Loaded

All

Sıra Sayısı

2

Contact Type

Male Pin

Style

Board to Cable/Wire

Contact Length Post

0.126 3.20mm

Çalışma Sıcaklığı

-40°C~105°C

Ambalaj

Tray
