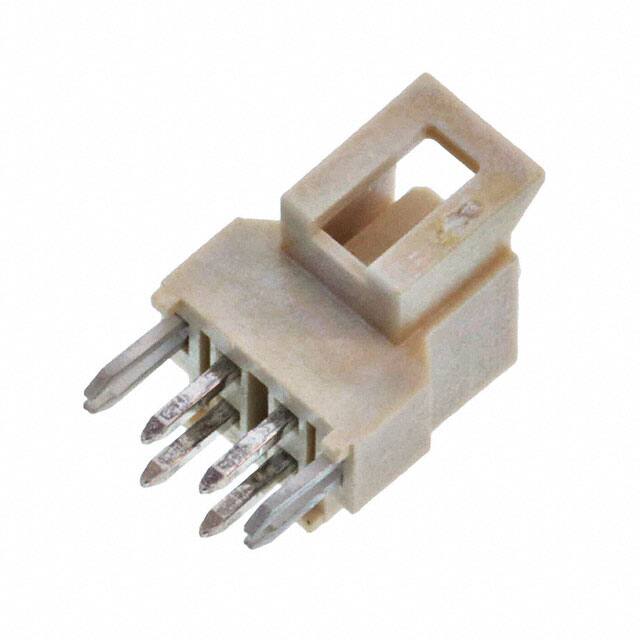

1053122304

Specifications

Stack Height Mating

21.30mm

Contact Type

Male Pin

Number Of Positions Loaded

All

Sıra Sayısı

2

Pozisyon Sayısı

4

Contact Length Post

0.126 3.20mm

Style

Board to Cable/Wire

Ambalaj

Tray

Çalışma Sıcaklığı

-40°C~105°C

Contact Finish Thickness Mating

30.0μin 0.76μm

Connector Type

Header

Contact Finish Mating

Gold

Contact Finish Post

Tin

Insulation Height

0.356 9.05mm

Fabrika Tedarik Süresi

10 Weeks

Yayın Yılı

2016

Insulation Materials

Liquid Crystal Polymer (LCP)

Parça Durumu

Active

Row Spacing Mating

0.098 (2.50mm)

Contact Finish Thickness Post

59.0μin 1.50μm

Fastening Type

Latch Holder

Nominal Gerilim

250V

Applications

Automotive, General Purpose, Industrial, Medical, Military, Telecommunications

Pitch Mating

0.098 2.50mm

Seri

Nano-Fit 105312

RoHS Durumu

ROHS3 Compliant

Özellikler

Board Lock

Nem Hassasiyeti (MSL)

Not Applicable

Terminal

Solder

Contact Materials

Brass

Shrouding

Shrouded - 4 Wall

Contact Shape

Square

Montaj Tipi

Through Hole

Insulation Color

Natural

ECCN Kodu

EAR99
