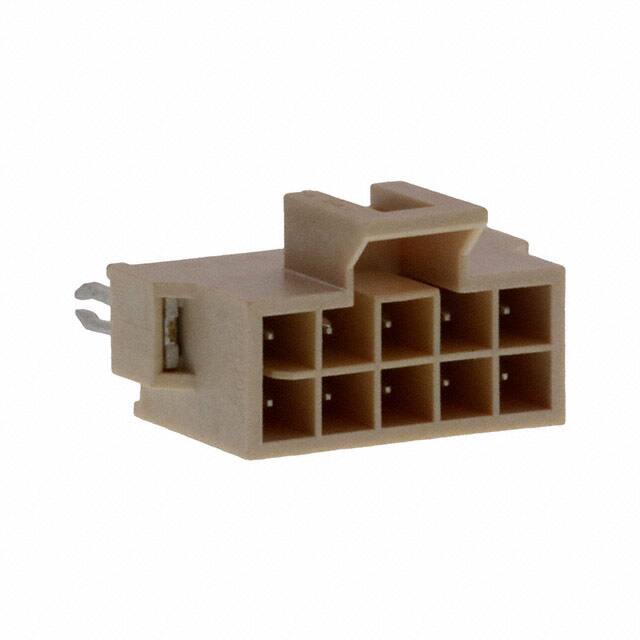

1053122110

Specifications

Contact Type

Male Pin

Pozisyon Sayısı

10

Number Of Positions Loaded

All

Sıra Sayısı

2

Stack Height Mating

21.30mm

Ambalaj

Tray

Çalışma Sıcaklığı

-40°C~105°C

Style

Board to Cable/Wire

Contact Length Post

0.126 3.20mm

Connector Type

Header

Contact Finish Thickness Mating

59.0μin 1.50μm

Contact Finish Mating

Tin

Yayın Yılı

2016

Fabrika Tedarik Süresi

10 Weeks

Insulation Height

0.356 9.05mm

Contact Finish Thickness Post

59.0μin 1.50μm

Row Spacing Mating

0.098 (2.50mm)

Nominal Gerilim

250V

Fastening Type

Latch Holder

Parça Durumu

Active

Insulation Materials

Liquid Crystal Polymer (LCP)

Pitch Mating

0.098 2.50mm

Applications

Automotive, General Purpose, Industrial, Medical, Military, Telecommunications

Seri

Nano-Fit 105312

Özellikler

Board Lock

ECCN Kodu

EAR99

Terminal

Solder

Nem Hassasiyeti (MSL)

1 (Unlimited)

Insulation Color

Natural

Shrouding

Shrouded - 4 Wall

Contact Shape

Square

Montaj Tipi

Through Hole

Contact Materials

Brass

HTS Kodu

8536.69.40.30
