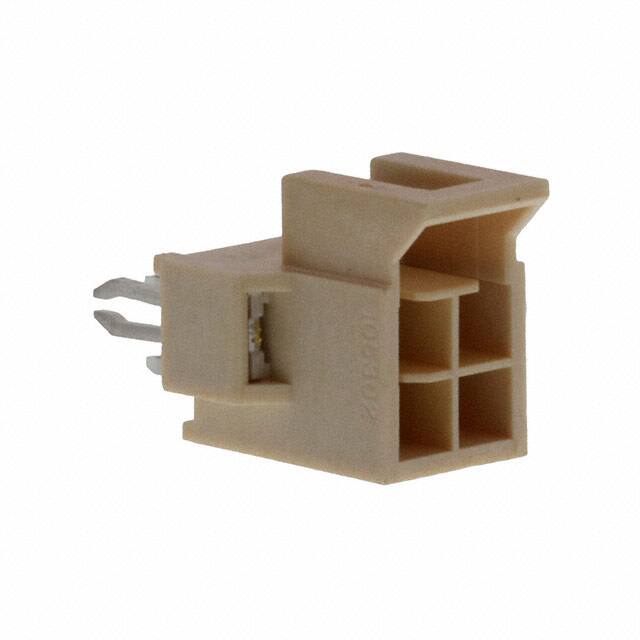

1053122104

Specifications

Contact Finish Thickness Mating

59.0μin 1.50μm

Connector Type

Header

Contact Finish Mating

Tin

Insulation Height

0.356 9.05mm

Fabrika Tedarik Süresi

10 Weeks

Yayın Yılı

2016

Stack Height Mating

21.30mm

Contact Type

Male Pin

Number Of Positions Loaded

All

Sıra Sayısı

2

Pozisyon Sayısı

4

Style

Board to Cable/Wire

Contact Length Post

0.126 3.20mm

Ambalaj

Tray

Çalışma Sıcaklığı

-40°C~105°C

Özellikler

Board Lock

Nem Hassasiyeti (MSL)

1 (Unlimited)

Terminal

Solder

Contact Materials

Brass

Shrouding

Shrouded - 4 Wall

Contact Shape

Square

Montaj Tipi

Through Hole

Insulation Color

Natural

ECCN Kodu

EAR99

Parça Durumu

Active

Insulation Materials

Liquid Crystal Polymer (LCP)

Contact Finish Thickness Post

59.0μin 1.50μm

Row Spacing Mating

0.098 (2.50mm)

Nominal Gerilim

250V

Fastening Type

Latch Holder

Applications

Automotive, General Purpose, Industrial, Medical, Military, Telecommunications

Pitch Mating

0.098 2.50mm

Seri

Nano-Fit 105312
