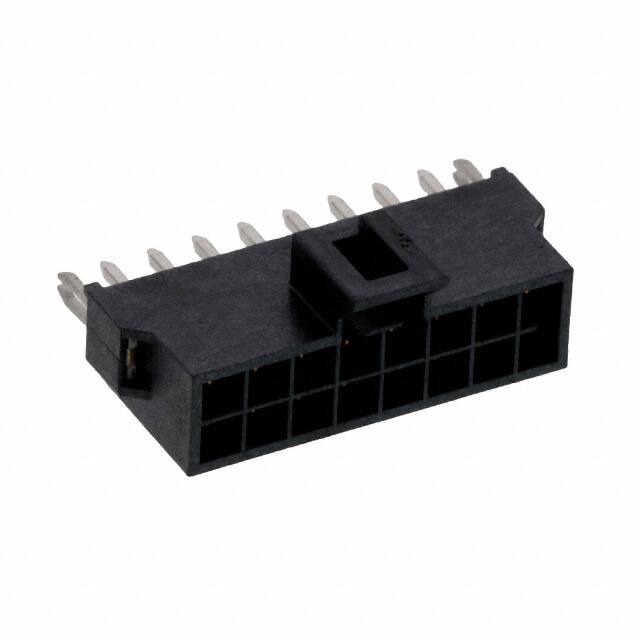

1053121316

Specifications

Nominal Gerilim

250V

Fastening Type

Latch Holder

Row Spacing Mating

0.098 (2.50mm)

Contact Finish Thickness Post

59.0μin 1.50μm

Insulation Materials

Liquid Crystal Polymer (LCP)

Parça Durumu

Active

RoHS Durumu

ROHS3 Compliant

Seri

Nano-Fit 105312

Applications

Automotive, General Purpose, Industrial, Medical, Military, Telecommunications

Pitch Mating

0.098 2.50mm

Özellikler

Board Lock

ECCN Kodu

EAR99

Contact Materials

Brass

HTS Kodu

8536.69.40.30

Contact Shape

Square

Shrouding

Shrouded - 4 Wall

Montaj Tipi

Through Hole

Insulation Color

Black

Nem Hassasiyeti (MSL)

Not Applicable

Terminal

Solder

Number Of Positions Loaded

All

Sıra Sayısı

2

Pozisyon Sayısı

16

Contact Type

Male Pin

Stack Height Mating

21.30mm

Çalışma Sıcaklığı

-40°C~105°C

Ambalaj

Tray

Contact Length Post

0.126 3.20mm

Style

Board to Cable/Wire

Contact Finish Post

Tin

Contact Finish Mating

Gold

Contact Finish Thickness Mating

30.0μin 0.76μm

Connector Type

Header

Yayın Yılı

2016

Insulation Height

0.356 9.05mm

Fabrika Tedarik Süresi

10 Weeks
