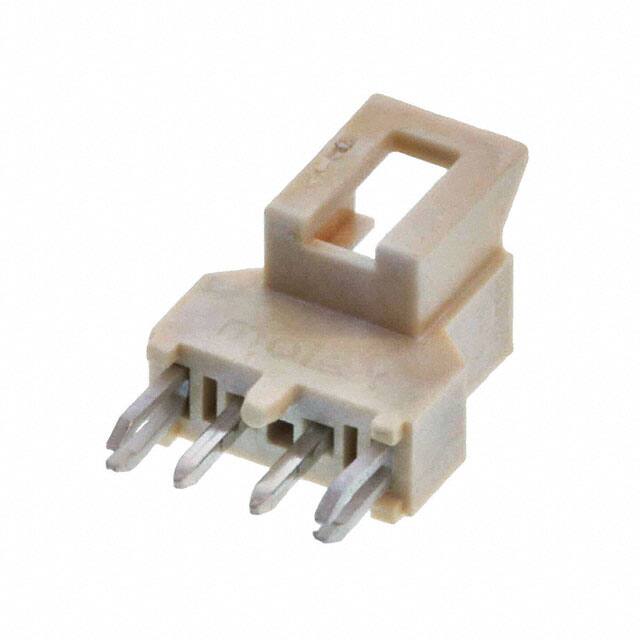

1053112302

Specifications

Özellikler

Board Guide, Board Lock

Terminal

Solder

Nem Hassasiyeti (MSL)

Not Applicable

Shrouding

Shrouded - 4 Wall

Contact Shape

Square

Montaj Tipi

Through Hole

Insulation Color

Natural

Contact Materials

Brass

HTS Kodu

8536.69.40.30

ECCN Kodu

EAR99

Parça Durumu

Active

Insulation Materials

Liquid Crystal Polymer (LCP)

Contact Finish Thickness Post

59.0μin 1.50μm

Nominal Gerilim

250V

Fastening Type

Latch Holder

Pitch Mating

0.098 2.50mm

Applications

Automotive, General Purpose, Industrial, Medical, Military, Telecommunications

Seri

Nano-Fit 105311

RoHS Durumu

ROHS3 Compliant

Connector Type

Header

Contact Finish Thickness Mating

30.0μin 0.76μm

Contact Finish Post

Tin

Contact Finish Mating

Gold

Fabrika Tedarik Süresi

12 Weeks

Insulation Height

0.356 9.05mm

Yayın Yılı

2016

Stack Height Mating

21.30mm

Contact Type

Male Pin

Pozisyon Sayısı

2

Sıra Sayısı

1

Number Of Positions Loaded

All

Contact Length Post

0.126 3.20mm

Style

Board to Cable/Wire

Ambalaj

Tray

Çalışma Sıcaklığı

-40°C~105°C
