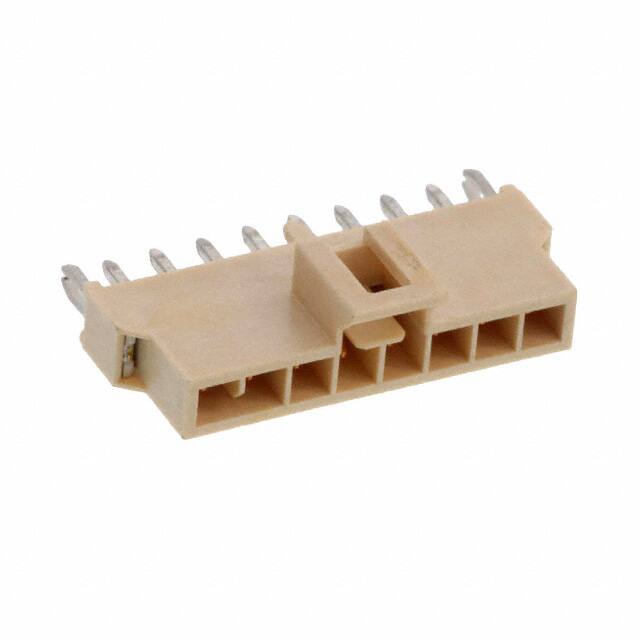

1053112208

Specifications

Shrouding

Shrouded - 4 Wall

Contact Shape

Square

Montaj Tipi

Through Hole

Insulation Color

Natural

Contact Materials

Brass

Terminal

Solder

Nem Hassasiyeti (MSL)

Not Applicable

Özellikler

Board Guide, Board Lock

RoHS Durumu

ROHS3 Compliant

Seri

Nano-Fit 105311

Pitch Mating

0.098 2.50mm

Applications

Automotive, General Purpose, Industrial, Medical, Military, Telecommunications

Nominal Gerilim

250V

Fastening Type

Latch Holder

Contact Finish Thickness Post

59.0μin 1.50μm

Parça Durumu

Active

Insulation Materials

Liquid Crystal Polymer (LCP)

Yayın Yılı

2016

Kurşunsuz Kodu

yes

Fabrika Tedarik Süresi

9 Weeks

Insulation Height

0.356 9.05mm

Contact Finish Mating

Gold

Contact Finish Post

Tin

Connector Type

Header

Contact Finish Thickness Mating

15.0μin 0.38μm

Çalışma Sıcaklığı

-40°C~105°C

Ambalaj

Tray

Style

Board to Cable/Wire

Contact Length Post

0.126 3.20mm

Pozisyon Sayısı

8

Number Of Positions Loaded

All

Sıra Sayısı

1

Contact Type

Male Pin

Stack Height Mating

21.30mm
