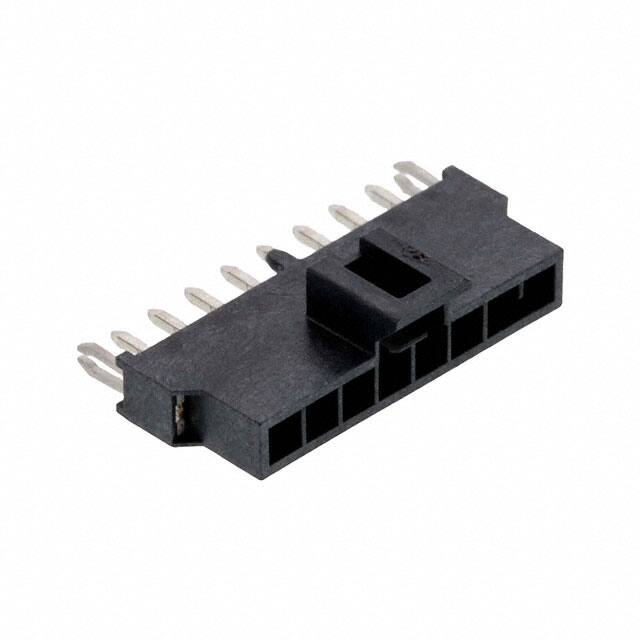

1053111208

Specifications

Çalışma Sıcaklığı

-40°C~105°C

Ambalaj

Tray

Contact Length Post

0.126 3.20mm

Style

Board to Cable/Wire

Sıra Sayısı

1

Number Of Positions Loaded

All

Pozisyon Sayısı

8

Contact Type

Male Pin

Stack Height Mating

21.30mm

Yayın Yılı

2016

Kurşunsuz Kodu

yes

Insulation Height

0.356 9.05mm

Fabrika Tedarik Süresi

9 Weeks

Contact Finish Post

Tin

Contact Finish Mating

Gold

Contact Finish Thickness Mating

15.0μin 0.38μm

Connector Type

Header

RoHS Durumu

ROHS3 Compliant

Seri

Nano-Fit 105311

Applications

Automotive, General Purpose, Industrial, Medical, Military, Telecommunications

Pitch Mating

0.098 2.50mm

Fastening Type

Latch Holder

Nominal Gerilim

250V

Contact Finish Thickness Post

59.0μin 1.50μm

Parça Durumu

Active

Insulation Materials

Liquid Crystal Polymer (LCP)

Contact Materials

Brass

Insulation Color

Black

Montaj Tipi

Through Hole

Contact Shape

Square

Shrouding

Shrouded - 4 Wall

Nem Hassasiyeti (MSL)

Not Applicable

Terminal

Solder

Özellikler

Board Guide, Board Lock
