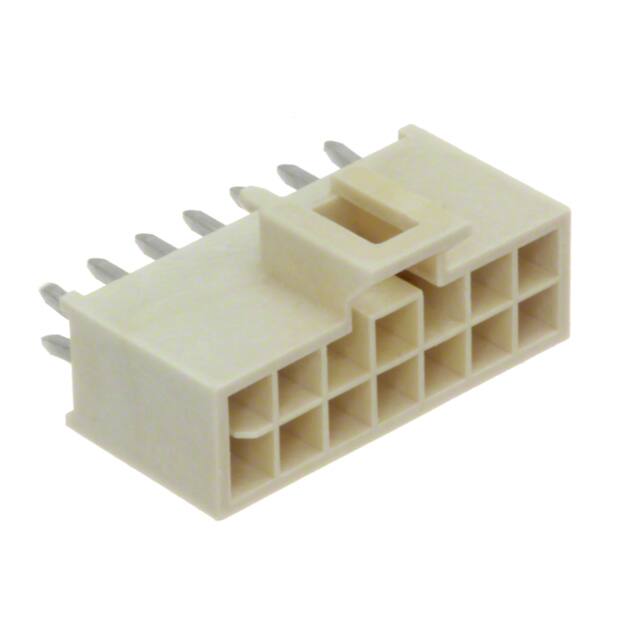

1053102214

Specifications

Insulation Height

0.356 9.05mm

Fabrika Tedarik Süresi

10 Weeks

Filter Feature

NO

Yayın Yılı

2016

Contact Finish Thickness Mating

15.0μin 0.38μm

Connector Type

Header

Contact Finish Mating

Gold

Contact Finish Post

Tin

Contact Length Post

0.126 3.20mm

Style

Board to Cable/Wire

Ul Flammability Code

94V-0

Ambalaj

Tray

Çalışma Sıcaklığı

-40°C~105°C

Stack Height Mating

21.30mm

Mixed Contacts

NO

Contact Type

Male Pin

Number Of Positions Loaded

All

Sıra Sayısı

2

Pozisyon Sayısı

14

Nem Hassasiyeti (MSL)

Not Applicable

Terminal

Kinked Pin, Solder

Din Conformance

NO

HTS Kodu

8536.69.40.30

Contact Materials

Brass

Montaj Tipi

Through Hole

Contact Shape

Square

Shrouding

Shrouded - 4 Wall

Insulation Color

Natural

Empty Shell

NO

ECCN Kodu

EAR99

Özellikler

Board Guide

Additional Feature

NANO-FIT, SHROUDED, POLARIZED

Applications

Automotive, General Purpose, Industrial, Medical, Military, Telecommunications

Pitch Mating

0.098 2.50mm

Seri

Nano-Fit 105310

Mil Conformance

NO

RoHS Durumu

ROHS3 Compliant

Insulation Materials

Liquid Crystal Polymer (LCP)

Parça Durumu

Active

Iec Conformance

NO
