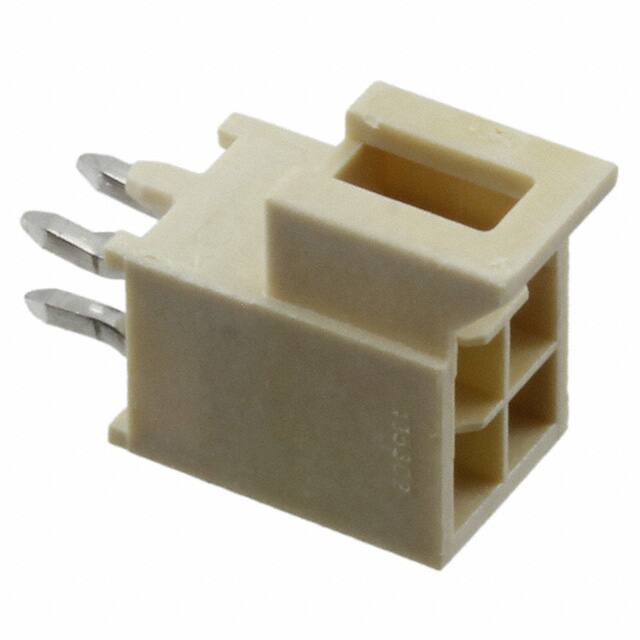

1053102204

Specifications

Style

Board to Cable/Wire

Contact Length Post

0.126 3.20mm

Ambalaj

Tray

Çalışma Sıcaklığı

-40°C~105°C

Stack Height Mating

21.30mm

Contact Type

Male Pin

Pozisyon Sayısı

4

Number Of Positions Loaded

All

Sıra Sayısı

2

Fabrika Tedarik Süresi

10 Weeks

Insulation Height

0.356 9.05mm

Kurşunsuz Kodu

yes

Yayın Yılı

2016

Connector Type

Header

Contact Finish Thickness Mating

15.0μin 0.38μm

Contact Finish Post

Tin

Contact Finish Mating

Gold

Pitch Mating

0.098 2.50mm

Applications

Automotive, General Purpose, Industrial, Medical, Military, Telecommunications

Seri

Nano-Fit 105310

RoHS Durumu

ROHS3 Compliant

Parça Durumu

Active

Insulation Materials

Liquid Crystal Polymer (LCP)

Contact Finish Thickness Post

59.0μin 1.50μm

Row Spacing Mating

0.098 (2.50mm)

Nominal Gerilim

250V

Fastening Type

Latch Holder

Terminal

Kinked Pin, Solder

Nem Hassasiyeti (MSL)

Not Applicable

Shrouding

Shrouded - 4 Wall

Contact Shape

Square

Montaj Tipi

Through Hole

Insulation Color

Natural

Contact Materials

Brass

Özellikler

Board Guide
