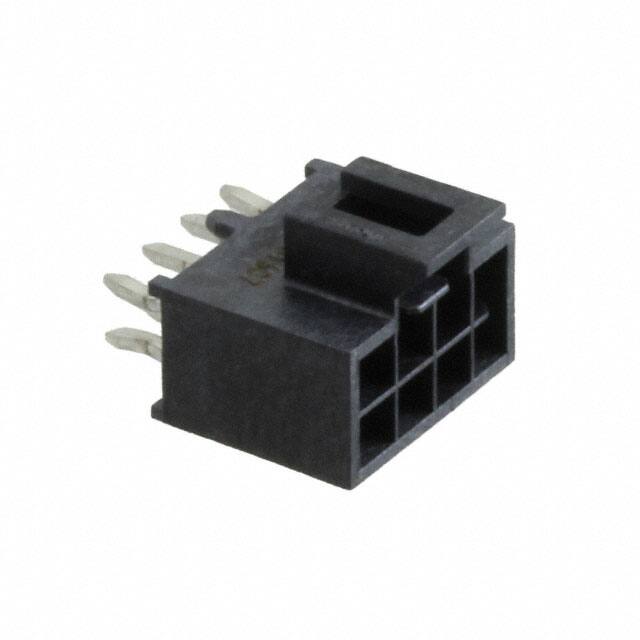

1053101208

Specifications

Özellikler

Board Guide

Terminal

Kinked Pin, Solder

Nem Hassasiyeti (MSL)

Not Applicable

Insulation Color

Black

Montaj Tipi

Through Hole

Contact Shape

Square

Shrouding

Shrouded - 4 Wall

Contact Materials

Brass

ECCN Kodu

EAR99

Insulation Materials

Liquid Crystal Polymer (LCP)

Parça Durumu

Active

Row Spacing Mating

0.098 (2.50mm)

Contact Finish Thickness Post

59.0μin 1.50μm

Nominal Gerilim

250V

Fastening Type

Latch Holder

Pitch Mating

0.098 2.50mm

Applications

Automotive, General Purpose, Industrial, Medical, Military, Telecommunications

Seri

Nano-Fit 105310

RoHS Durumu

ROHS3 Compliant

Connector Type

Header

Contact Finish Thickness Mating

15.0μin 0.38μm

Contact Finish Post

Tin

Contact Finish Mating

Gold

Fabrika Tedarik Süresi

12 Weeks

Insulation Height

0.356 9.05mm

Yayın Yılı

2016

Stack Height Mating

21.30mm

Contact Type

Male Pin

Pozisyon Sayısı

8

Sıra Sayısı

2

Number Of Positions Loaded

All

Style

Board to Cable/Wire

Contact Length Post

0.126 3.20mm

Ambalaj

Tray

Çalışma Sıcaklığı

-40°C~105°C
