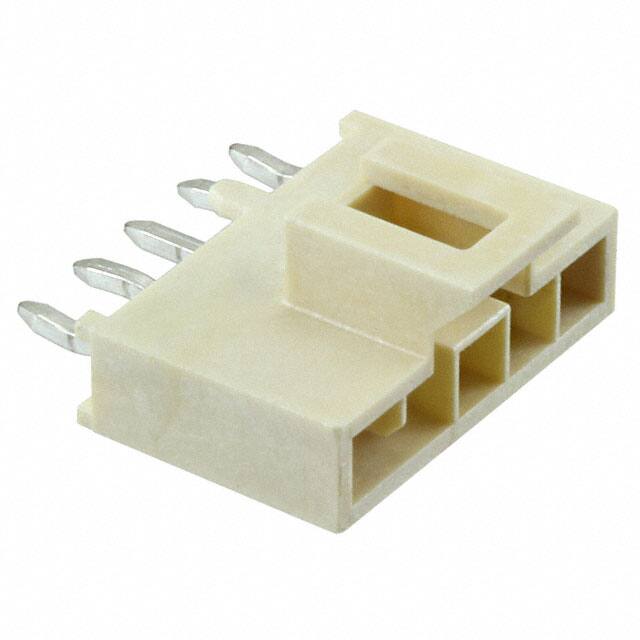

1053092205

Specifications

Style

Board to Cable/Wire

Contact Length Post

0.126 3.20mm

Çalışma Sıcaklığı

-40°C~105°C

Ambalaj

Tray

Stack Height Mating

21.30mm

Number Of Positions Loaded

All

Sıra Sayısı

1

Pozisyon Sayısı

5

Contact Type

Male Pin

Insulation Height

0.356 9.05mm

Fabrika Tedarik Süresi

9 Weeks

Yayın Yılı

2016

Contact Finish Mating

Gold

Contact Finish Post

Tin

Contact Finish Thickness Mating

15.0μin 0.38μm

Connector Type

Header

Seri

Nano-Fit 105309

Applications

Automotive, General Purpose, Industrial, Medical, Military, Telecommunications

Pitch Mating

0.098 2.50mm

RoHS Durumu

ROHS3 Compliant

Insulation Materials

Liquid Crystal Polymer (LCP)

Parça Durumu

Active

Nominal Gerilim

250V

Fastening Type

Latch Holder

Contact Finish Thickness Post

59.0μin 1.50μm

Contact Materials

Brass

Shrouding

Shrouded - 4 Wall

Contact Shape

Square

Montaj Tipi

Through Hole

Insulation Color

Natural

Nem Hassasiyeti (MSL)

Not Applicable

Terminal

Kinked Pin, Solder

ECCN Kodu

EAR99

Özellikler

Board Guide
