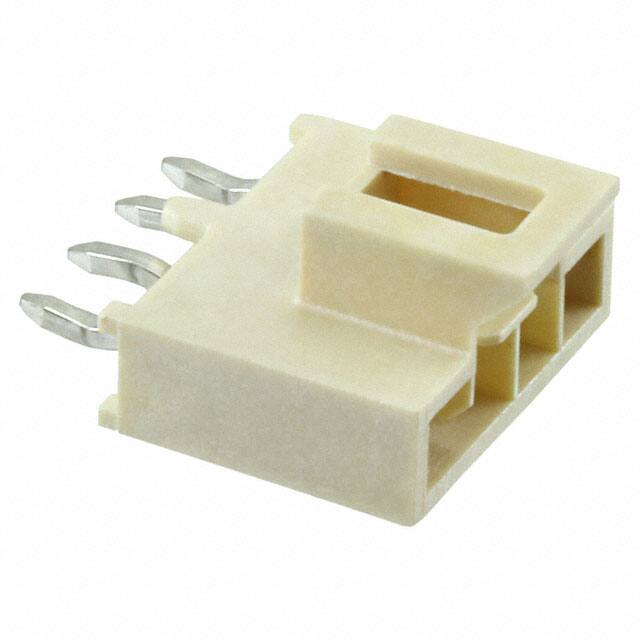

1053092204

Specifications

Contact Finish Thickness Post

59.0μin 1.50μm

Nominal Gerilim

250V

Fastening Type

Latch Holder

Parça Durumu

Active

Insulation Materials

Liquid Crystal Polymer (LCP)

RoHS Durumu

ROHS3 Compliant

Applications

Automotive, General Purpose, Industrial, Medical, Military, Telecommunications

Pitch Mating

0.098 2.50mm

Seri

Nano-Fit 105309

Özellikler

Board Guide

ECCN Kodu

EAR99

Nem Hassasiyeti (MSL)

Not Applicable

Terminal

Kinked Pin, Solder

Contact Materials

Brass

Shrouding

Shrouded - 4 Wall

Contact Shape

Square

Montaj Tipi

Through Hole

Insulation Color

Natural

Contact Type

Male Pin

Number Of Positions Loaded

All

Sıra Sayısı

1

Pozisyon Sayısı

4

Stack Height Mating

21.30mm

Ambalaj

Tray

Çalışma Sıcaklığı

-40°C~105°C

Style

Board to Cable/Wire

Contact Length Post

0.126 3.20mm

Contact Finish Thickness Mating

15.0μin 0.38μm

Connector Type

Header

Contact Finish Mating

Gold

Contact Finish Post

Tin

Yayın Yılı

2016

Insulation Height

0.356 9.05mm

Fabrika Tedarik Süresi

12 Weeks
