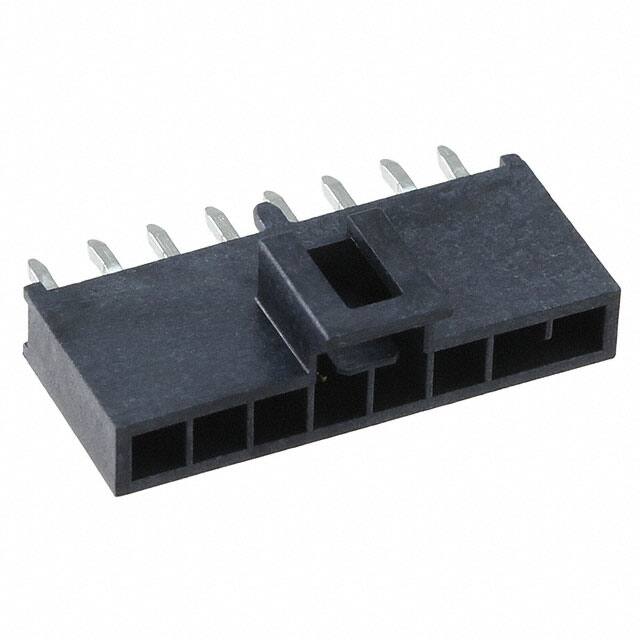

Specifications
- Contact Finish Mating
- Gold
- Contact Finish Post
- Tin
- Contact Finish Thickness Mating
- 30.0μin 0.76μm
- Connector Type
- Header
- Insulation Height
- 0.356 9.05mm
- Fabrika Tedarik Süresi
- 12 Weeks
- Yayın Yılı
- 2016
- Stack Height Mating
- 21.30mm
- Number Of Positions Loaded
- All
- Sıra Sayısı
- 1
- Pozisyon Sayısı
- 8
- Contact Type
- Male Pin
- Contact Length Post
- 0.126 3.20mm
- Style
- Board to Cable/Wire
- Çalışma Sıcaklığı
- -40°C~105°C
- Ambalaj
- Tray
- Özellikler
- Board Guide
- Contact Materials
- Brass
- Shrouding
- Shrouded - 4 Wall
- Contact Shape
- Square
- Montaj Tipi
- Through Hole
- Insulation Color
- Black
- Nem Hassasiyeti (MSL)
- Not Applicable
- Terminal
- Kinked Pin, Solder
- ECCN Kodu
- EAR99
- Insulation Materials
- Liquid Crystal Polymer (LCP)
- Parça Durumu
- Active
- Fastening Type
- Latch Holder
- Nominal Gerilim
- 250V
- Contact Finish Thickness Post
- 59.0μin 1.50μm
- Seri
- Nano-Fit 105309
- Applications
- Automotive, General Purpose, Industrial, Medical, Military, Telecommunications
- Pitch Mating
- 0.098 2.50mm
- RoHS Durumu
- ROHS3 Compliant
