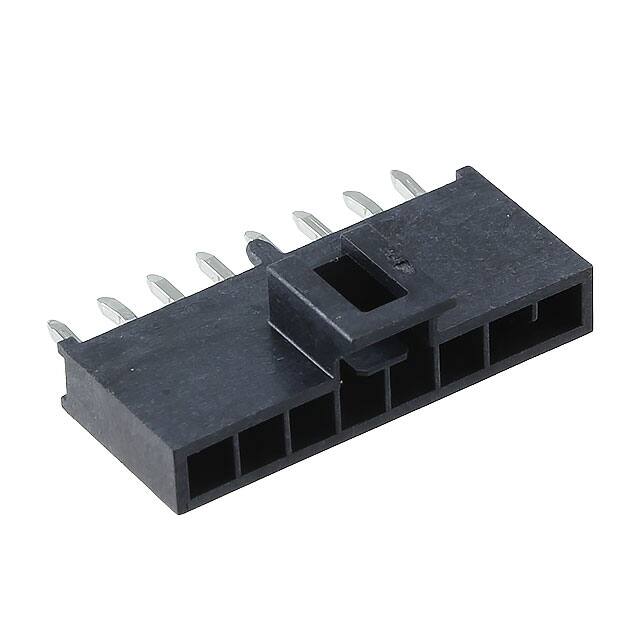

1053091108

Specifications

Stack Height Mating

21.30mm

Number Of Positions Loaded

All

Sıra Sayısı

1

Pozisyon Sayısı

8

Contact Type

Male Pin

Contact Length Post

0.126 3.20mm

Style

Board to Cable/Wire

Çalışma Sıcaklığı

-40°C~105°C

Ambalaj

Tray

Contact Finish Mating

Tin

Contact Finish Thickness Mating

59.0μin 1.50μm

Connector Type

Header

Insulation Height

0.356 9.05mm

Fabrika Tedarik Süresi

9 Weeks

Yayın Yılı

2016

Insulation Materials

Liquid Crystal Polymer (LCP)

Parça Durumu

Active

Fastening Type

Latch Holder

Nominal Gerilim

250V

Contact Finish Thickness Post

59.0μin 1.50μm

Seri

Nano-Fit 105309

Applications

Automotive, General Purpose, Industrial, Medical, Military, Telecommunications

Pitch Mating

0.098 2.50mm

RoHS Durumu

ROHS3 Compliant

Özellikler

Board Guide

Contact Materials

Brass

Shrouding

Shrouded - 4 Wall

Contact Shape

Square

Montaj Tipi

Through Hole

Insulation Color

Black

Nem Hassasiyeti (MSL)

1 (Unlimited)

Terminal

Kinked Pin, Solder

ECCN Kodu

EAR99
