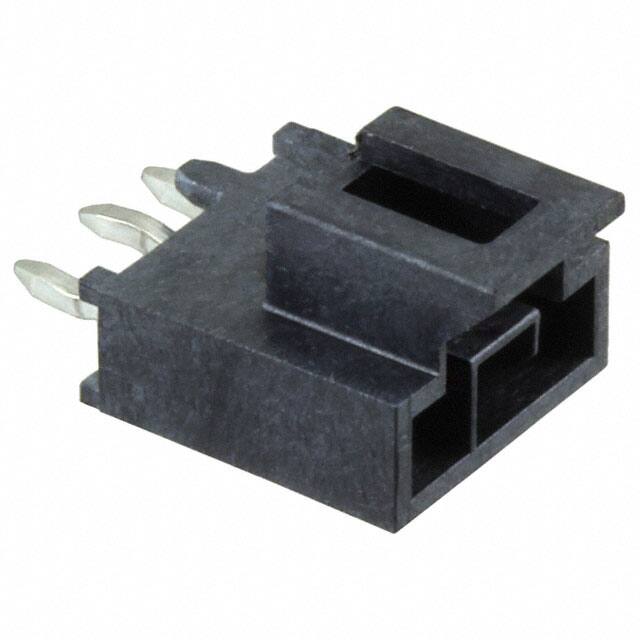

1053091103

Specifications

Fabrika Tedarik Süresi

12 Weeks

Insulation Height

0.356 9.05mm

Yayın Yılı

2016

Contact Finish Mating

Tin

Connector Type

Header

Contact Finish Thickness Mating

59.0μin 1.50μm

Style

Board to Cable/Wire

Contact Length Post

0.126 3.20mm

Çalışma Sıcaklığı

-40°C~105°C

Ambalaj

Tray

Stack Height Mating

21.30mm

Pozisyon Sayısı

3

Number Of Positions Loaded

All

Sıra Sayısı

1

Contact Type

Male Pin

Montaj Tipi

Through Hole

Contact Shape

Square

Shrouding

Shrouded - 4 Wall

Insulation Color

Black

Contact Materials

Brass

Terminal

Kinked Pin, Solder

Nem Hassasiyeti (MSL)

1 (Unlimited)

ECCN Kodu

EAR99

Özellikler

Board Guide

Seri

Nano-Fit 105309

Pitch Mating

0.098 2.50mm

Applications

Automotive, General Purpose, Industrial, Medical, Military, Telecommunications

RoHS Durumu

ROHS3 Compliant

Insulation Materials

Liquid Crystal Polymer (LCP)

Parça Durumu

Active

Fastening Type

Latch Holder

Nominal Gerilim

250V

Contact Finish Thickness Post

59.0μin 1.50μm
