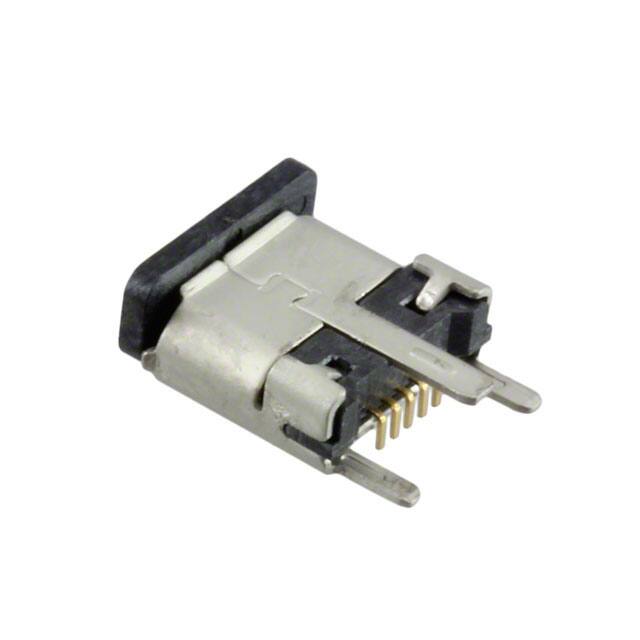

1051330011

Specifications

Mounting Feature

Vertical

Number Of Conductors

ONE

Fabrika Tedarik Süresi

16 Weeks

Pcb Contact Pattern

RECTANGULAR

Nem Hassasiyeti (MSL)

1 (Unlimited)

Mixed Contacts

NO

Contact Resistance

30mOhm

Din Conformance

NO

Shellshielding Material

Steel, Stainless

Empty Shell

NO

Number Of Ports

1

Number Of Pcb Rows

1

Yayın Yılı

2014

Reference Standard

UL

Shielding

Shielded

Insulation Materials

POLYETHYLENE

Insulation Color

Black

Ul Flammability Code

94V-0

Nominal Gerilim

30VAC

Ambalaj

Cut Tape (CT)

Contact Style

USB, SER B SQ

Body Depth

0.264 inch

Contact Materials

COPPER ALLOY

Specifications

USB 2.0

Shell Finish

MATTE TIN

Option

GENERAL PURPOSE

Mounting Option1

LOCKING

Plating Thickness

FLASH inch

Current Rating Amps

1A 1.8A

Terminal

Solder

Filter Feature

NO

Polarization Key

POLARIZED HOUSING

Shell Material

STAINLESS STEEL

Çalışma Sıcaklığı

-35°C~85°C

Terminal Adımı

0.6604mm

Parça Durumu

Active

Mating Cycles

10000

Iec Conformance

NO

Connector Type

USB - micro B

Montaj Tipi

Surface Mount
