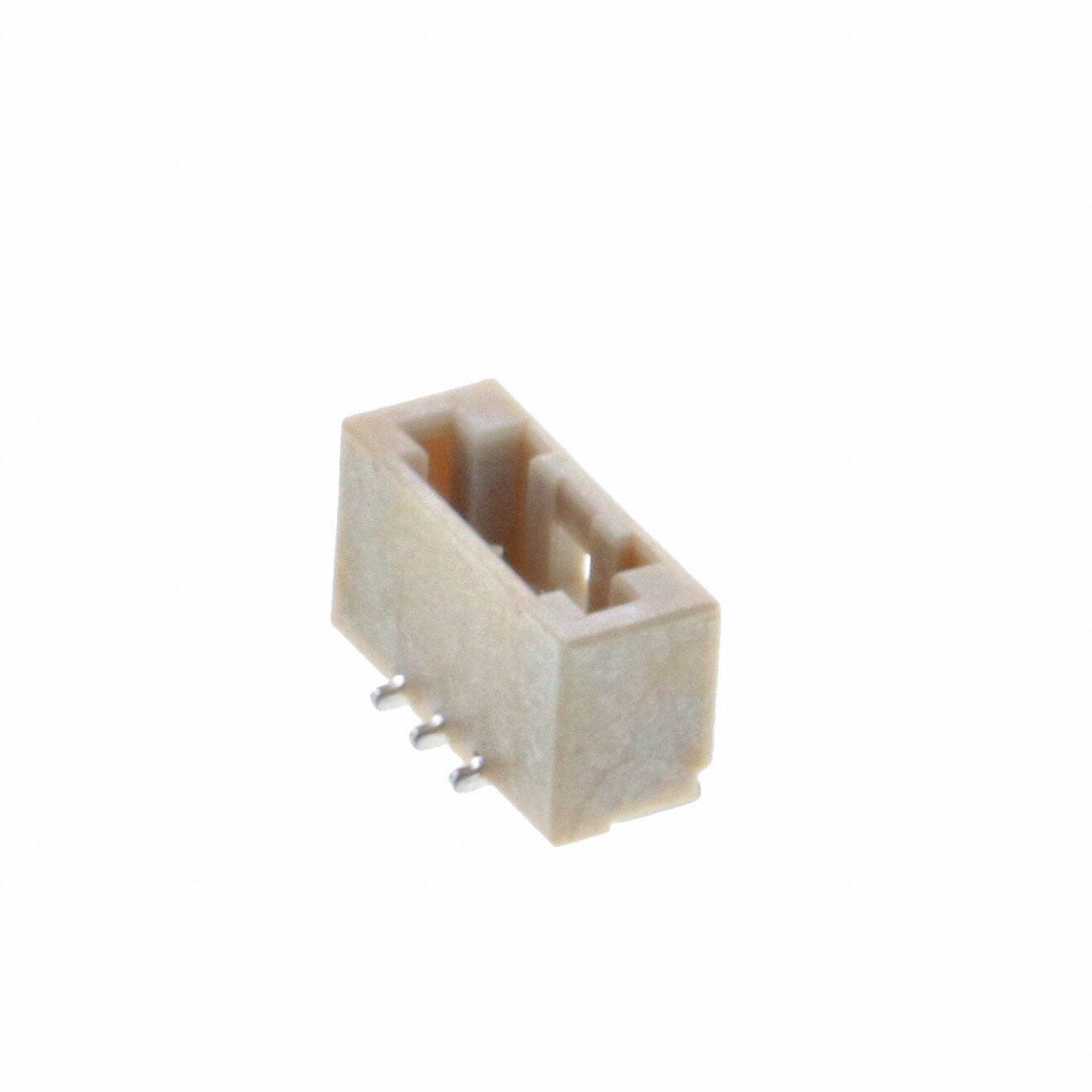

1041300310

Specifications

Insulation Color

Natural

Ambalaj

Tape & Reel (TR)

Insulation Height

0.156 3.96mm

Contact Materials

Phosphor Bronze

Number Of Positions Loaded

All

Material Flammability Rating

UL94 V-0

Sıra Sayısı

1

Connector Type

Header

Yayın Yılı

2015

Fabrika Tedarik Süresi

8 Weeks

Seri

IllumiMate 104130

Özellikler

Solder Retention

Number Of Pcb Rows

1

Insulation Materials

Liquid Crystal Polymer (LCP), Glass Filled, Halogen Free

Operating Temperature Min

-25°C

Contact Gender

FEMALE

Kurşunsuz Kodu

yes

Contact Lengthmating

0.055 1.40mm

Applications

General Purpose, Medical

Stack Height Mating

5.1mm 5.9mm

Fastening Type

Latch Holder

Nem Hassasiyeti (MSL)

1 (Unlimited)

Contact Shape

Rectangular

Contact Finish Thickness Post

118.1μin 3.00μm

Montaj Tipi

Surface Mount

Mounting Option1

LOCKING

Terminal

Solder

Style

Board to Cable/Wire

Total Number Of Contacts

3

Number Of Conductors

ONE

Pozisyon Sayısı

3

Contact Finish Thickness Mating

118.1μin 3.00μm

Reference Standard

UL

Reliability

COMMERCIAL

Parça Durumu

Last Time Buy

Pitch Mating

0.049 1.25mm

Body Length Or Diameter

0.287 inch

Shrouding

Shrouded - 4 Wall

RoHS Durumu

ROHS3 Compliant

Contact Finish Mating

Tin
