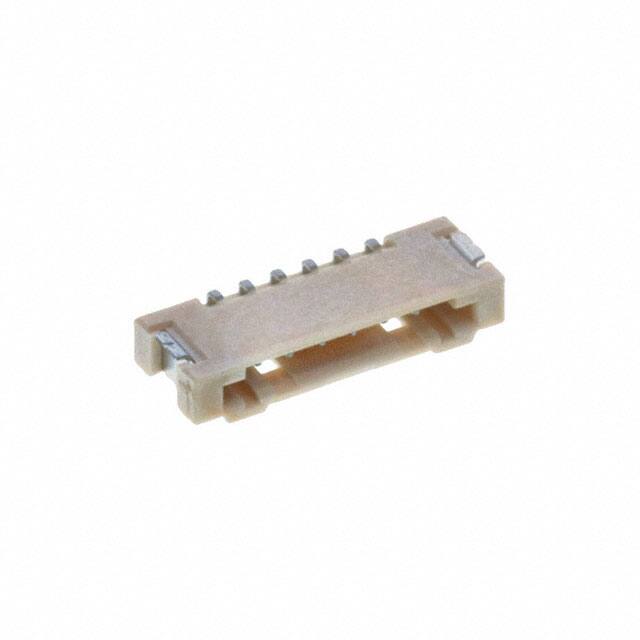

1040780610

Specifications

Contact Type

Male Pin

ECCN Kodu

EAR99

Number Of Circuits

6

Material

Thermoplastic

Parça Durumu

Active

Shrouding

Shrouded - 4 Wall

Pitch Mating

0.049 1.25mm

Reach Svhc

No SVHC

RoHS Durumu

ROHS3 Compliant

Contact Finish Mating

Tin

Contact Finish Thickness Mating

118.1μin 3.00μm

Orientation

Right Angle

Halogen Free

Low Halogen

Montaj

Surface Mount

Terminal

Solder

Glow Wire Compliant

Non-compliant

Elv

Compliant

Style

Board to Cable/Wire

Applications

General Purpose, Medical

Contact Lengthmating

0.102 2.60mm

Fastening Type

Latch Holder

Contact Finish Thickness Post

118.1μin 3.00μm

Montaj Tipi

Surface Mount, Right Angle

Nem Hassasiyeti (MSL)

1 (Unlimited)

Contact Shape

Square

Özellikler

Solder Retention

Seri

IllumiMate 104078

Insulation Materials

Liquid Crystal Polymer (LCP), Glass Filled, Halogen Free

Ambalaj

Tape & Reel (TR)

Insulation Color

Natural

Number Of Positions Loaded

All

Insulation Height

0.159 4.05mm

Contact Materials

Phosphor Bronze

Connector Type

Header

Sıra Sayısı

1

Material Flammability Rating

UL94 V-0

Fabrika Tedarik Süresi

9 Weeks

Yayın Yılı

2015
