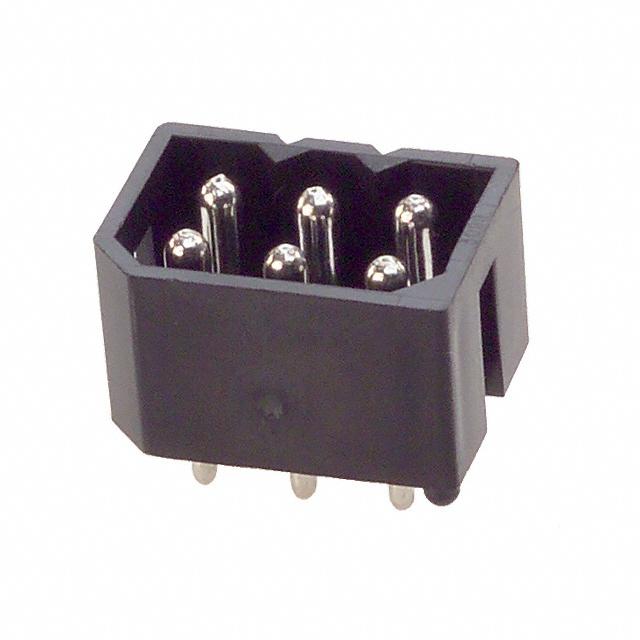

10-18-1061

Specifications

Ul Flammability Code

94V-0

Number Of Conductors

ONE

Yükseklik

10.7mm

Orientation

Vertical

Pitch

5.03mm

Radyasyon Dayanımı

No

Max Voltage Rating Ac

250V

Sıra Sayısı

2

Row Spacing Mating

5.0292 mm

Terminal

Solder

Iec Conformance

NO

Uzunluk

18.7mm

Reach Svhc

Unknown

JESD-609 Kodu

e3

Contact Plating

Tin

Yayın Yılı

2007

Body Breadth

0.54 inch

Depth

13.6mm

Additional Feature

POLARIZED, SHROUDED

Kurşunsuz Kodu

yes

Voltage Rated Dc

250V

Din Conformance

NO

Min. Çalışma Sıcaklığı

-40°C

Contact Materials

Brass

Renk

Black

Reliability

COMMERCIAL

Mil Conformance

NO

Filter Feature

NO

Montaj

Through Hole

RoHS Durumu

RoHS Compliant

Max Voltage Rating Dc

250.25kV

Mixed Contacts

NO

Connector Type

Male Pin

Bodyshell Style

SOCKET

Reference Standard

UL, CSA

Number Of Contacts

6

Contact Gender

Male

Housing Material

Polyester

Option

GENERAL PURPOSE

Kurşunsuz

Lead Free
