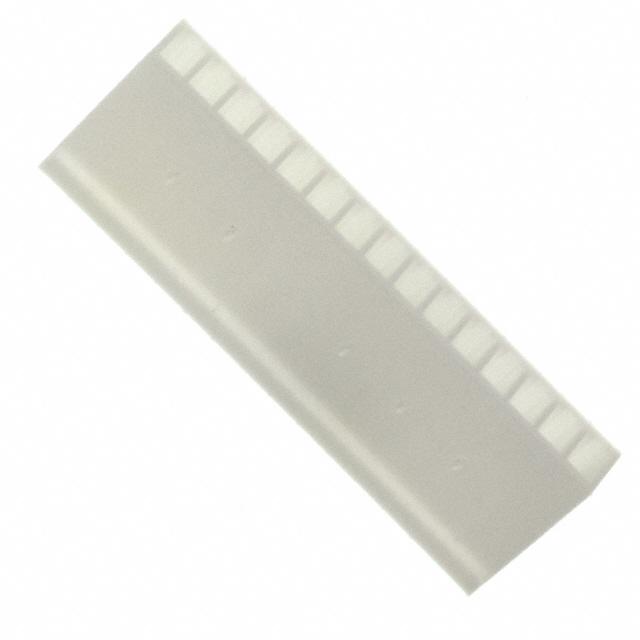

10-11-2153

Specifications

Mating Information

MULTIPLE MATING PARTS AVAILABLE

Uzunluk

38.66mm

Bodyshell Style

PLUG

Insulation Diametermin

0.06 inch

Reference Standard

UL, CSA

Number Of Contacts

15

Ul Flammability Code

94V-0

Withdrawl Forcemin

.556 N

Maks. Çalışma Sıcaklığı

75°C

Fastening Type

Ramp

Renk

White

Fabrika Tedarik Süresi

8 Weeks

Contact Gender

Female

Contact Materials

NOT SPECIFIED

Din Conformance

NO

Durability

25 Cycles

Kurşunsuz Kodu

yes

HTS Kodu

8536.69.40.40

Terminal

Crimp

Pitch

2.54mm

Contact Pattern

RECTANGULAR

Orientation

Straight

Contact Finish Mating

NOT SPECIFIED

Genişlik

5.08mm

RoHS Durumu

RoHS Compliant

Wire Size Max

22 AWG

Mil Conformance

NO

Wire Size Min

30 AWG

Ambalaj

Bulk

Montaj

Cable, Free Hanging

Polarization Key

POLARIZED KEY

Connector Type

Receptacle

Option

GENERAL PURPOSE

Mixed Contacts

NO

Glow Wire Compliant

Non-compliant

Rated Current Signal

2.5A

Sıra Sayısı

1

Min. Çalışma Sıcaklığı

0°C

Halogen Free

Low Halogen

Additional Feature

SHROUDED
