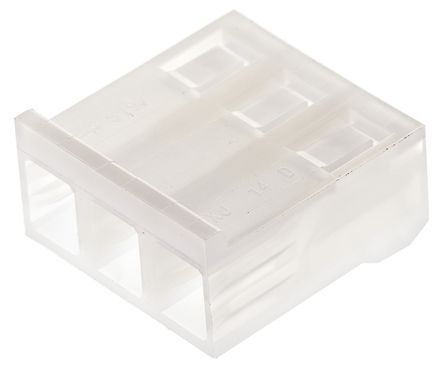

10-01-3036

Specifications

Gender

Receptacle

Kurşunsuz

Lead Free

Mating Information

MULTIPLE MATING PARTS AVAILABLE

Maks. Çalışma Sıcaklığı

105°C

Montaj

Cable, Free Hanging

Mixed Contacts

NO

Fabrika Tedarik Süresi

12 Weeks

Max Voltage Rating Ac

250V

Genişlik

8.85mm

Mil Conformance

NO

Min. Çalışma Sıcaklığı

-40°C

Filter Feature

NO

Pitch

5.08mm

Fastening Type

Ramp

Radyasyon Dayanımı

No

Body Breadth

0.289 inch

Yayın Yılı

2001

Body Material

Nylon

Pozisyon Sayısı

3

Terminal

Crimp

Kurşunsuz Kodu

yes

Iec Conformance

NO

Reliability

COMMERCIAL

Glow Wire Compliant

Non-compliant

Uzunluk

15.16mm

Ul Flammability Code

94V-2

Polarization Key

POLARIZED HOUSING

Total Number Of Contacts

3

Reference Standard

UL,CSA,TUV

Connector Type

Receptacle, Socket

Contact Style

SQ PIN-SKT

Option

GENERAL PURPOSE

Din Conformance

NO

Max Voltage Rating Dc

250.25kV

Contact Pattern

RECTANGULAR

Contact Gender

Female

Reach Svhc

Unknown

Halogen Free

Low Halogen

Renk

Natural

RoHS Durumu

RoHS Compliant
