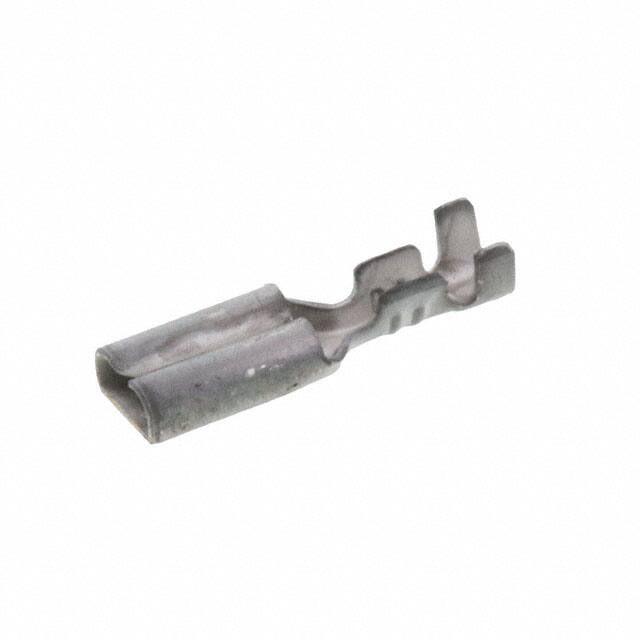

0940304201

Specifications

Terminal And Terminal Block Type

PUSH-ON TERMINAL

Nem Hassasiyeti (MSL)

1 (Unlimited)

Wire Gauge

20-24 AWG

Length Tab

0.244 6.20mm

Seri

94030

Contact Finish

Tin

Length Overall

0.527 13.39mm

Montaj Tipi

Free Hanging (In-Line)

Tab Thickness

0.032 0.81mm

Parça Durumu

Obsolete

Gender

Female

Contact Materials

Brass

Insulation

Non-Insulated

RoHS Durumu

ROHS3 Compliant

Terminal

Crimp

Ambalaj

Tape & Reel (TR)

Kurşunsuz Kodu

yes

Width Tab

0.110 2.79mm

Terminal Type

Standard

Insulation Diameter

0.047 ~ 0.083 (1.19mm ~ 2.11mm)
