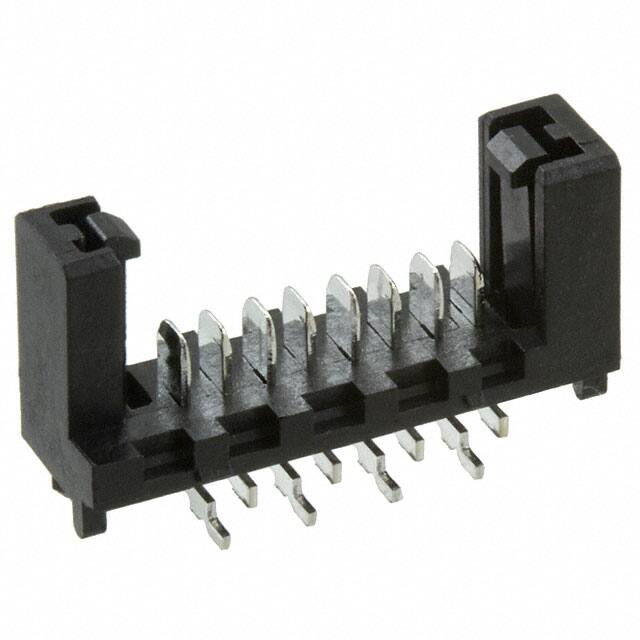

0908160208

Specifications

Montaj Tipi

Surface Mount

Özellikler

Board Guide

Applications

Automotive, General Purpose, Industrial, Medical

Contact Finish Post

Tin

Contact Plating

Tin

Pitch

1.27mm

Current Rating Amps

1.2A

Contact Finish Mating

Tin

Çalışma Sıcaklığı

-40°C~105°C

Fabrika Tedarik Süresi

30 Weeks

Gender

Male

Akım Değeri

1.2A

Orientation

Vertical

Material Flammability Rating

UL94 HB

Parça Durumu

Active

RoHS Durumu

ROHS3 Compliant

Contact Materials

Brass

Insulation Materials

Polyphthalamide (PPA), Glass Filled

Contact Type

Male Blade

Number Of Positions Loaded

All

Pitch Mating

0.050 1.27mm

Seri

Picoflex 90816

Insulation Color

Black

Insulation Height

0.333 8.45mm

Fastening Type

Latch Lock

Housing Material

Nylon

Nominal Gerilim

250V

Shrouding

Shrouded - 2 Wall

Pozisyon Sayısı

8

Terminal

Solder

Ambalaj

Tape & Reel (TR)

Glow Wire Compliant

Non-compliant

Number Of Contacts

8

Contact Lengthmating

0.083 2.10mm

Number Of Circuits

8

Sıra Sayısı

1

Nem Hassasiyeti (MSL)

1 (Unlimited)

Style

Board to Cable/Wire

Contact Finish Thickness Mating

118.1μin 3.00μm

Connector Type

Header
