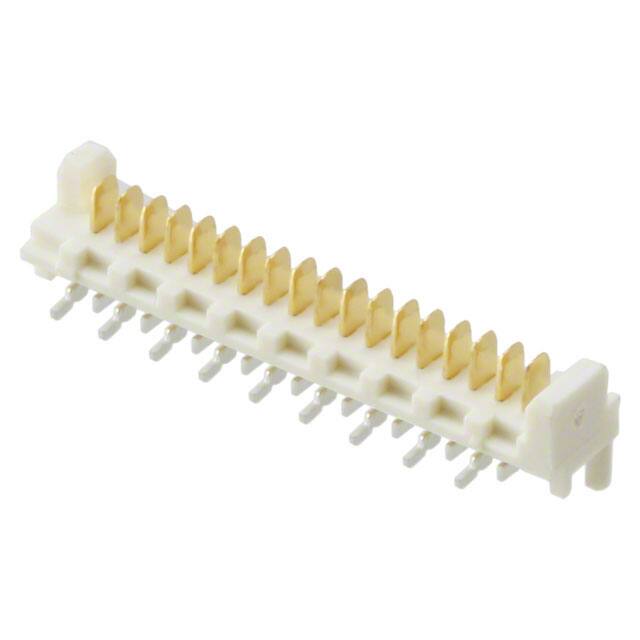

0908143918

Specifications

Min. Çalışma Sıcaklığı

-40°C

Shrouding

Shrouded - 2 Wall

Mating Contact Pitch

0.05 inch

Ambalaj

Tape & Reel (TR)

Mixed Contacts

NO

Seri

Picoflex PF-50 90814

Insulation Color

Natural

Max Voltage Rating Ac

250V

Housing Material

Nylon

Contact Finish Thickness Post

118.1μin 3.00μm

Additional Feature

LOW PROFILE, POLARIZED

Plating Thickness

24μin

Sıra Sayısı

1

Nem Hassasiyeti (MSL)

1 (Unlimited)

Contact Shape

Rectangular

Number Of Pcb Rows

2

Depth

6.9mm

Number Of Circuits

16

Kurşunsuz Kodu

yes

Maks. Çalışma Sıcaklığı

105°C

Reference Standard

UL

Withdrawl Forcemin

.2502 N

Din Conformance

NO

Pcb Contact Pattern

STAGGERED

Number Of Positions Loaded

All

Contact Type

Male Blade

Contact Materials

Cartridge Brass

Dielectric Withstanding Voltage

750VAC V

Uzunluk

26.64mm

Terminal

Solder

Pozisyon Sayısı

18

Housing Color

Beige

Insulation Height

0.161 4.10mm

Pitch Mating

0.050 1.27mm

Contact Resistance

15mOhm

Fastening Type

Push-Pull

Iec Conformance

NO

Style

Board to Cable/Wire

Contact Finish Thickness Mating

24.0μin 0.61μm

Montaj

Surface Mount
