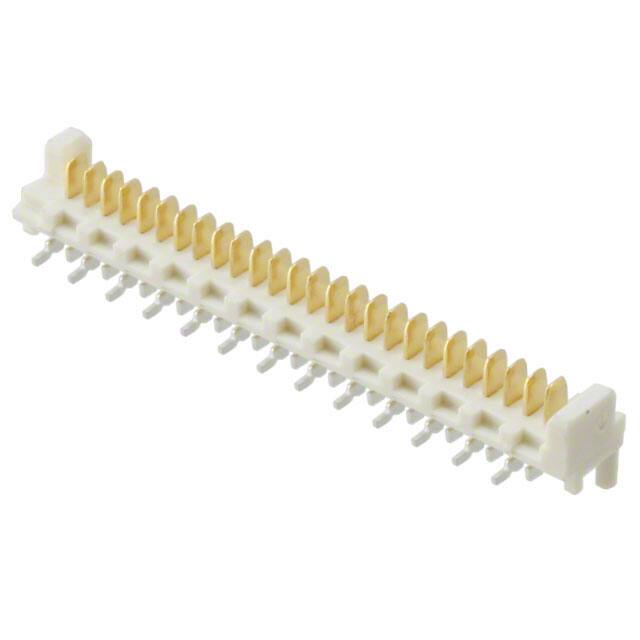

Specifications
- HTS Kodu
- 8536.69.40.40
- Fabrika Tedarik Süresi
- 9 Weeks
- Contact Finish Mating
- Palladium-Nickel
- Maks. Çalışma Sıcaklığı
- 105°C
- ECCN Kodu
- EAR99
- Current Rating Amps
- 1.2A
- Contact Finish Post
- Tin
- Contact Plating
- Gold
- Applications
- Automotive, General Purpose, Industrial, Medical
- Montaj Tipi
- Surface Mount
- Number Of Positions Loaded
- All
- Contact Type
- Male Blade
- Insulation Materials
- Polyamide (PA), Nylon, Glass Filled
- Contact Materials
- Cartridge Brass
- RoHS Durumu
- ROHS3 Compliant
- Parça Durumu
- Active
- Material Flammability Rating
- UL94 V-0
- Radyasyon Dayanımı
- No
- Orientation
- Vertical
- Akım Değeri
- 2.4A
- Uzunluk
- 36.8mm
- Housing Color
- Beige
- Ambalaj
- Bulk
- Min. Çalışma Sıcaklığı
- -40°C
- Terminal
- Solder
- Pozisyon Sayısı
- 26
- Shrouding
- Shrouded - 2 Wall
- Housing Material
- Nylon
- Contact Finish Thickness Post
- 118.1μin 3.00μm
- Contact Resistance
- 15mOhm
- Fastening Type
- Push-Pull
- Insulation Color
- Natural
- Insulation Height
- 0.161 4.10mm
- Seri
- Picoflex PF-50 90814
- Pitch Mating
- 0.050 1.27mm
- Max Voltage Rating Ac
- 250V
- Contact Shape
- Rectangular
- Connector Type
- Header
- Contact Finish Thickness Mating
- 24.0μin 0.61μm
- Style
- Board to Cable/Wire
