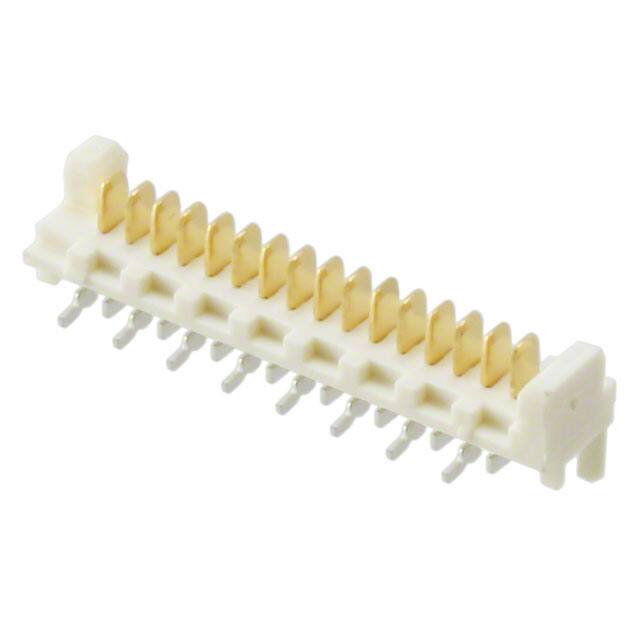

0908143616

Specifications

Connector Type

Header

Montaj

Surface Mount

Style

Board to Cable/Wire

Contact Finish Thickness Mating

24.0μin 0.61μm

Max Voltage Rating Dc

250V

Total Number Of Contacts

16

Contact Lengthmating

0.085 2.15mm

Housing Color

Beige

Terminal

Solder

Pozisyon Sayısı

16

Iec Conformance

NO

Contact Resistance

15mOhm

Fastening Type

Push-Pull

Pitch Mating

0.050 1.27mm

Insulation Height

0.161 4.10mm

RoHS Durumu

ROHS3 Compliant

Parça Durumu

Active

Insulation Materials

Polyamide (PA), Nylon, Glass Filled

Material Flammability Rating

UL94 V-0

Orientation

Vertical

Reliability

COMMERCIAL

Number Of Conductors

ONE

Ul Flammability Code

94V-0

Mil Conformance

NO

Polarization Key

POLARIZING PEG

Filter Feature

NO

Akım Değeri

2.4A

Contact Finish Mating

Palladium-Nickel

HTS Kodu

8536.69.40.40

Fabrika Tedarik Süresi

11 Weeks

Current Rating Amps

1.2A

ECCN Kodu

EAR99

Contact Finish Post

Tin

Contact Plating

Gold

Applications

Automotive, General Purpose, Industrial, Medical

Montaj Tipi

Surface Mount

Contact Shape

Rectangular

Nem Hassasiyeti (MSL)

1 (Unlimited)

Sıra Sayısı

1

Additional Feature

LOW PROFILE, POLARIZED
