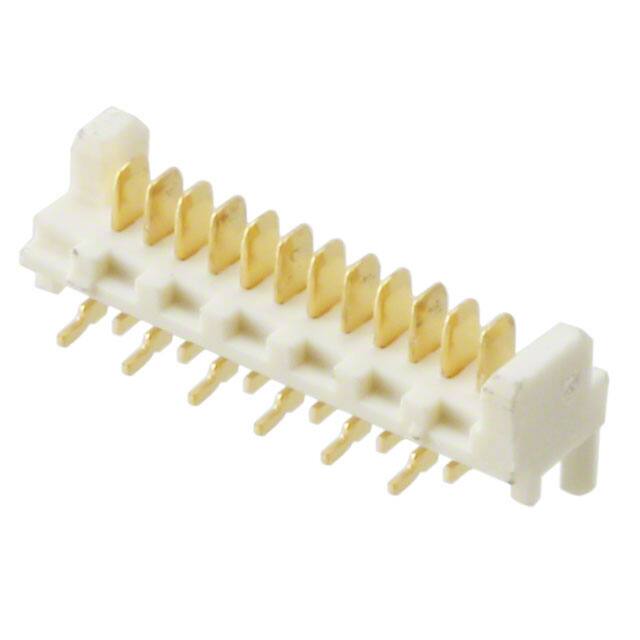

0908143612

Specifications

Number Of Positions Loaded

All

Contact Type

Male Blade

Pcb Contact Pattern

STAGGERED

Contact Materials

Cartridge Brass

Withdrawl Forcemin

.2502 N

Din Conformance

NO

Radyasyon Dayanımı

No

Uzunluk

19.02mm

Dielectric Withstanding Voltage

750VAC V

Maks. Çalışma Sıcaklığı

105°C

Reference Standard

UL

Contact Shape

Rectangular

Additional Feature

LOW PROFILE, POLARIZED

Plating Thickness

24μin

Nem Hassasiyeti (MSL)

1 (Unlimited)

Sıra Sayısı

1

Kurşunsuz Kodu

yes

Number Of Circuits

10

Depth

6.9mm

Number Of Pcb Rows

2

Mating Contact Pitch

0.05 inch

Mixed Contacts

NO

Ambalaj

Bulk

Min. Çalışma Sıcaklığı

-40°C

Shrouding

Shrouded - 2 Wall

Housing Material

Nylon

Contact Finish Thickness Post

118.1μin 3.00μm

Insulation Color

Natural

Seri

Picoflex PF-50 90814

Max Voltage Rating Ac

250V

Insulation Materials

Polyamide (PA), Nylon, Glass Filled

Parça Durumu

Active

RoHS Durumu

ROHS3 Compliant

Material Flammability Rating

UL94 V-0

Orientation

Vertical

Reliability

COMMERCIAL

Filter Feature

NO

Polarization Key

POLARIZING PEG

Akım Değeri

2.4A

Number Of Conductors

ONE
