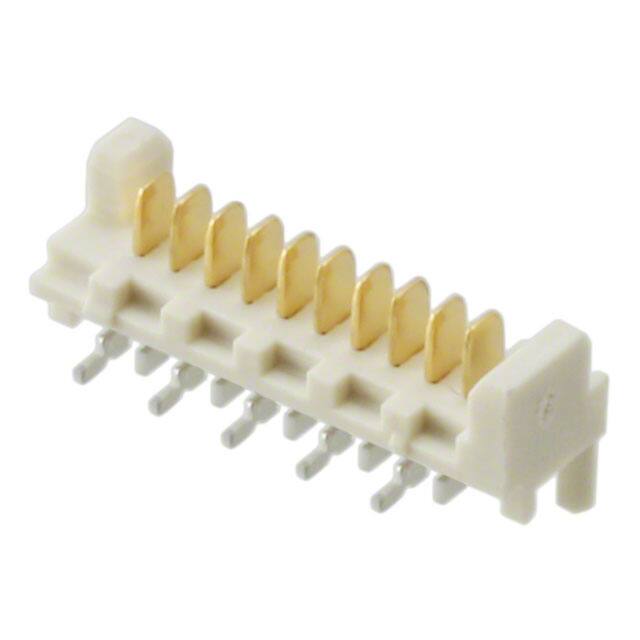

0908143610

Specifications

Contact Lengthmating

0.085 2.15mm

Total Number Of Contacts

10

Style

Board to Cable/Wire

Contact Finish Thickness Mating

24.0μin 0.61μm

Montaj

Surface Mount

Connector Type

Header

Insulation Height

0.161 4.10mm

Pitch Mating

0.050 1.27mm

Iec Conformance

NO

Contact Resistance

15mOhm

Fastening Type

Push-Pull

Terminal

Solder

Pozisyon Sayısı

10

Housing Color

Beige

Filter Feature

NO

Polarization Key

POLARIZING PEG

Akım Değeri

2.4A

Number Of Conductors

ONE

Ul Flammability Code

94V-0

Mil Conformance

NO

Orientation

Vertical

Reliability

COMMERCIAL

Material Flammability Rating

UL94 V-0

Insulation Materials

Polyamide (PA), Nylon, Glass Filled

RoHS Durumu

ROHS3 Compliant

Parça Durumu

Active

Montaj Tipi

Surface Mount

Contact Finish Post

Tin

Contact Plating

Gold

Applications

Automotive, General Purpose, Industrial, Medical

Current Rating Amps

1.2A

ECCN Kodu

EAR99

Fabrika Tedarik Süresi

11 Weeks

Contact Finish Mating

Palladium-Nickel

Number Of Pcb Rows

2

Kurşunsuz Kodu

yes

Number Of Circuits

8

Depth

6.9mm

Plating Thickness

24μin

Additional Feature

LOW PROFILE, POLARIZED
