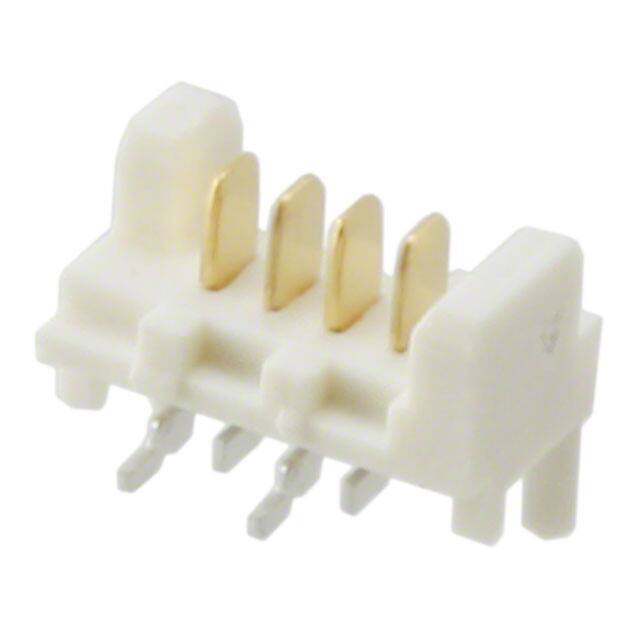

0908143604

Specifications

Kurşunsuz Kodu

yes

Number Of Pcb Rows

2

Contact Shape

Rectangular

Additional Feature

LOW PROFILE, POLARIZED

Nem Hassasiyeti (MSL)

1 (Unlimited)

Sıra Sayısı

1

Contact Finish Thickness Post

118.1μin 3.00μm

Insulation Color

Natural

Seri

Picoflex PF-50 90814

Mounting Option1

LOCKING

Mating Contact Pitch

0.05 inch

Mixed Contacts

NO

Ambalaj

Bulk

Shrouding

Shrouded - 2 Wall

Dielectric Withstanding Voltage

750VAC V

Contact Type

Male Blade

Number Of Positions Loaded

All

Pcb Contact Pattern

STAGGERED

Contact Materials

Cartridge Brass

Withdrawl Forcemin

.2502 N

Din Conformance

NO

Reference Standard

UL

Body Depth

0.203 inch

Board Mounting Option

PEG

Total Number Of Contacts

4

Contact Lengthmating

0.085 2.15mm

Connector Type

Header

Style

Board to Cable/Wire

Contact Finish Thickness Mating

24.0μin 0.61μm

Nominal Gerilim

250V

Iec Conformance

NO

Fastening Type

Push-Pull

Insulation Height

0.161 4.10mm

Pitch Mating

0.050 1.27mm

Terminal

Solder

Pozisyon Sayısı

4

Reliability

COMMERCIAL

Polarization Key

POLARIZING PEG

Filter Feature

NO

Number Of Conductors

ONE
