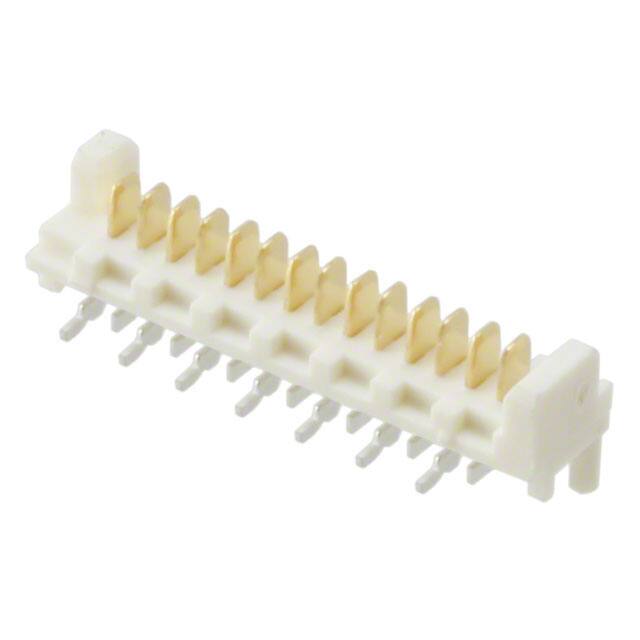

0908143014

Specifications

Seri

Picoflex PF-50 90814

Contact Finish Thickness Post

118.1μin 3.00μm

Housing Material

Polyamide

Shrouding

Shrouded - 2 Wall

Mixed Contacts

NO

Ambalaj

Tube

Mating Contact Pitch

0.05 inch

Number Of Pcb Rows

2

Kurşunsuz Kodu

yes

Nem Hassasiyeti (MSL)

1 (Unlimited)

Sıra Sayısı

1

Operating Temperature Min

-40°C

Plating Thickness

24μin

Additional Feature

POLARIZED

Contact Shape

Rectangular

Body Depth

0.293 inch

Reference Standard

UL

Lead Pitch

1.27mm

Uzunluk

21.6mm

Dielectric Withstanding Voltage

750VAC V

Din Conformance

NO

Radyasyon Dayanımı

No

Withdrawl Forcemin

.2502 N

Contact Materials

Cartridge Brass

Number Of Positions Loaded

All

Contact Type

Male Blade

Pcb Contact Pattern

STAGGERED

Pitch Mating

0.050 1.27mm

Insulation Height

0.252 6.40mm

Genişlik

5mm

Iec Conformance

NO

Fastening Type

Push-Pull

Nominal Gerilim

250V

Terminal

Solder

Glow Wire Compliant

Non-compliant

Housing Color

Natural

Contact Lengthmating

0.085 2.15mm

Number Of Contacts

14

Montaj

Surface Mount

Style

Board to Cable/Wire
