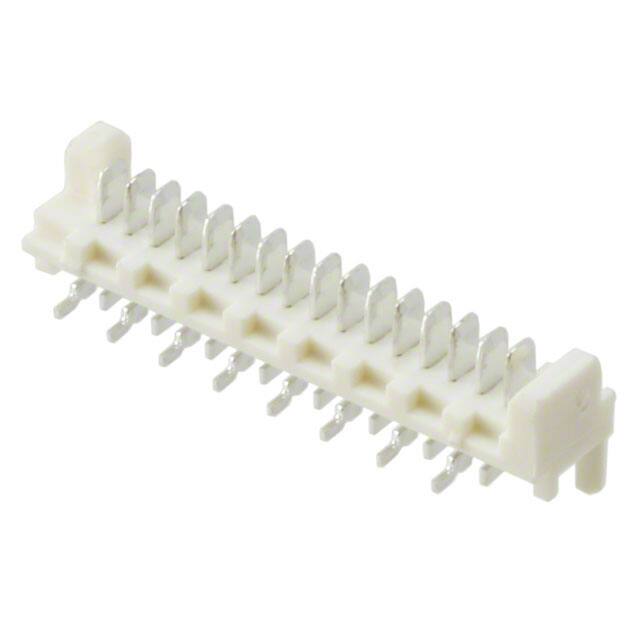

0908140816

Specifications

Body Depth

0.203 inch

Reference Standard

UL

Dielectric Withstanding Voltage

750VAC V

Withdrawl Forcemin

.2502 N

Din Conformance

NO

Pcb Contact Pattern

STAGGERED

Contact Type

Male Blade

Number Of Positions Loaded

All

Contact Materials

Cartridge Brass

Durability

30 Cycles

Seri

Picoflex PF-50 90814

Insulation Color

Natural

Shrouding

Shrouded - 2 Wall

Mating Contact Pitch

0.05 inch

Mounting Option1

LOCKING

Ambalaj

Tube

Mixed Contacts

NO

Number Of Pcb Rows

2

Kurşunsuz Kodu

yes

Operating Temperature Min

-40°C

Additional Feature

POLARIZED

Sıra Sayısı

1

Nem Hassasiyeti (MSL)

1 (Unlimited)

Contact Shape

Rectangular

Özellikler

Board Guide

Montaj Tipi

Surface Mount

Applications

Automotive, General Purpose, Industrial, Medical

Current Rating Amps

1.2A

Fabrika Tedarik Süresi

30 Weeks

Contact Finish Mating

Tin

Body Length Or Diameter

0.949 inch

Polarization Key

POLARIZING PEG

Filter Feature

NO

Ul Flammability Code

94V-0

Mil Conformance

NO

Number Of Conductors

ONE

Reliability

COMMERCIAL

Material Flammability Rating

UL94 V-0

Insulation Materials

Polyamide (PA), Nylon, Glass Filled

Parça Durumu

Active
