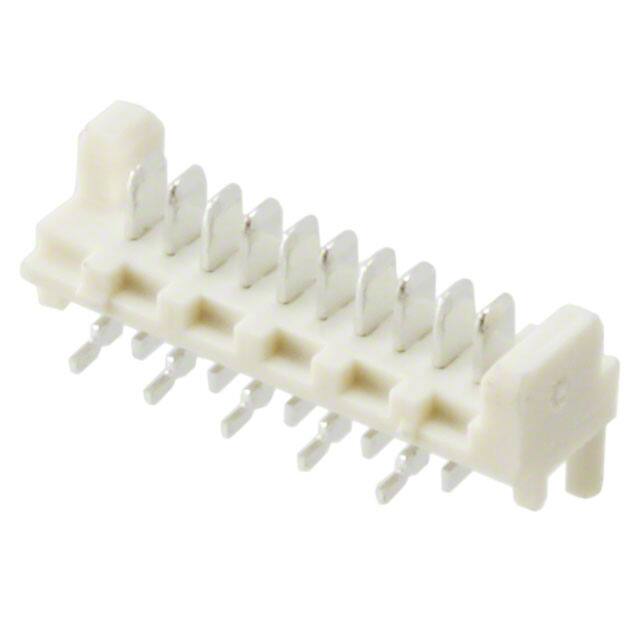

0908140810

Specifications

Body Depth

0.203 inch

Reference Standard

UL

Dielectric Withstanding Voltage

750VAC V

Din Conformance

NO

Withdrawl Forcemin

.2502 N

Contact Materials

Cartridge Brass

Durability

30 Cycles

Pcb Contact Pattern

STAGGERED

Contact Type

Male Blade

Number Of Positions Loaded

All

Seri

Picoflex PF-50 90814

Insulation Color

Natural

Shrouding

Shrouded - 2 Wall

Ambalaj

Tube

Mixed Contacts

NO

Mating Contact Pitch

0.05 inch

Mounting Option1

LOCKING

Number Of Pcb Rows

2

Kurşunsuz Kodu

yes

Sıra Sayısı

1

Nem Hassasiyeti (MSL)

1 (Unlimited)

Operating Temperature Min

-40°C

Additional Feature

POLARIZED

Contact Shape

Rectangular

Montaj Tipi

Surface Mount

Özellikler

Board Guide

Applications

Automotive, General Purpose, Industrial, Medical

ECCN Kodu

EAR99

Current Rating Amps

1.2A

Body Length Or Diameter

0.649 inch

Contact Finish Mating

Tin

Fabrika Tedarik Süresi

30 Weeks

HTS Kodu

8536.69.40.40

Mil Conformance

NO

Ul Flammability Code

94V-0

Number Of Conductors

ONE

Filter Feature

NO

Polarization Key

POLARIZING PEG

Reliability

COMMERCIAL

Material Flammability Rating

UL94 V-0
