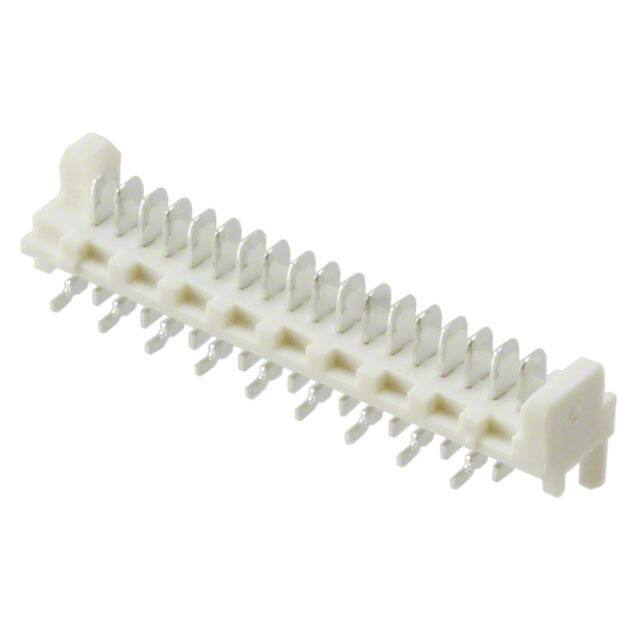

0908140718

Specifications

Connector Type

Header

Style

Board to Cable/Wire

Contact Finish Thickness Mating

118.1μin 3.00μm

Montaj

Surface Mount

Total Number Of Contacts

18

Contact Lengthmating

0.085 2.15mm

Housing Color

Beige

Terminal

Solder

Pozisyon Sayısı

18

Iec Conformance

NO

Fastening Type

Push-Pull

Contact Resistance

15mOhm

Insulation Height

0.161 4.10mm

Pitch Mating

0.050 1.27mm

Insulation Materials

Polyamide (PA), Nylon, Glass Filled

RoHS Durumu

ROHS3 Compliant

Parça Durumu

Active

Material Flammability Rating

UL94 V-0

Orientation

Vertical

Reliability

COMMERCIAL

Polarization Key

POLARIZING PEG

Filter Feature

NO

Akım Değeri

2.4A

Number Of Conductors

ONE

Ul Flammability Code

94V-0

Mil Conformance

NO

Fabrika Tedarik Süresi

30 Weeks

Contact Finish Mating

Tin

Current Rating Amps

1.2A

Applications

Automotive, General Purpose, Industrial, Medical

Montaj Tipi

Surface Mount

Contact Shape

Rectangular

Additional Feature

POLARIZED

Nem Hassasiyeti (MSL)

1 (Unlimited)

Sıra Sayısı

1

Kurşunsuz Kodu

yes

Depth

6.9mm

Number Of Circuits

16

Number Of Pcb Rows

2

Mating Contact Pitch

0.05 inch
