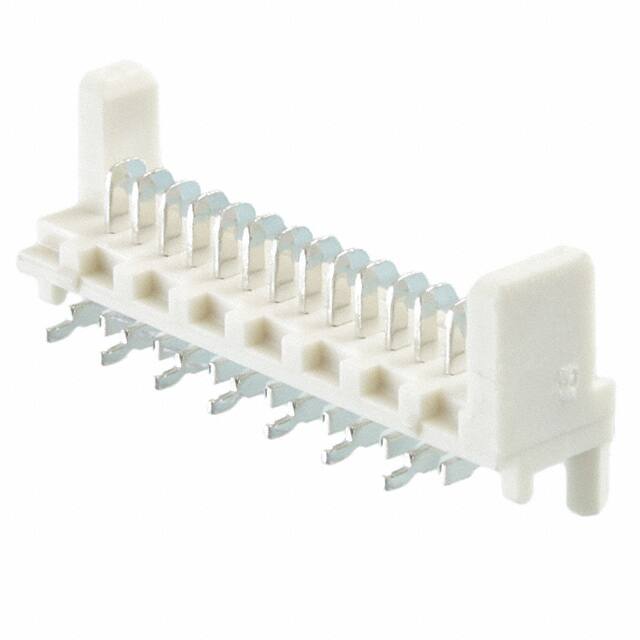

0908140714

Specifications

Contact Resistance

15mOhm

Fastening Type

Push-Pull

Pitch Mating

0.050 1.27mm

Insulation Height

0.161 4.10mm

Housing Color

Beige

Pozisyon Sayısı

14

Terminal

Solder

Max Voltage Rating Dc

250V

Total Number Of Contacts

14

Contact Lengthmating

0.085 2.15mm

Connector Type

Header

Montaj

Surface Mount

Style

Board to Cable/Wire

Contact Finish Thickness Mating

118.1μin 3.00μm

Applications

Automotive, General Purpose, Industrial, Medical

Montaj Tipi

Surface Mount

Terminal Adımı

2.54mm

Contact Finish Mating

Tin

Fabrika Tedarik Süresi

30 Weeks

HTS Kodu

8536.69.40.40

ECCN Kodu

EAR99

Current Rating Amps

1.2A

Reliability

COMMERCIAL

Orientation

Vertical

Gender

Male

Number Of Conductors

ONE

Akım Değeri

2.4A

Polarization Key

POLARIZING PEG

Parça Durumu

Active

RoHS Durumu

ROHS3 Compliant

Insulation Materials

Polyamide (PA), Nylon, Glass Filled

Material Flammability Rating

UL94 V-0

Housing Material

Nylon

Max Voltage Rating Ac

250V

Seri

Picoflex PF-50 90814

Insulation Color

Natural

Ambalaj

Tape & Reel (TR)

Mating Contact Pitch

0.05 inch

Shrouding

Shrouded - 2 Wall

Min. Çalışma Sıcaklığı

-40°C
