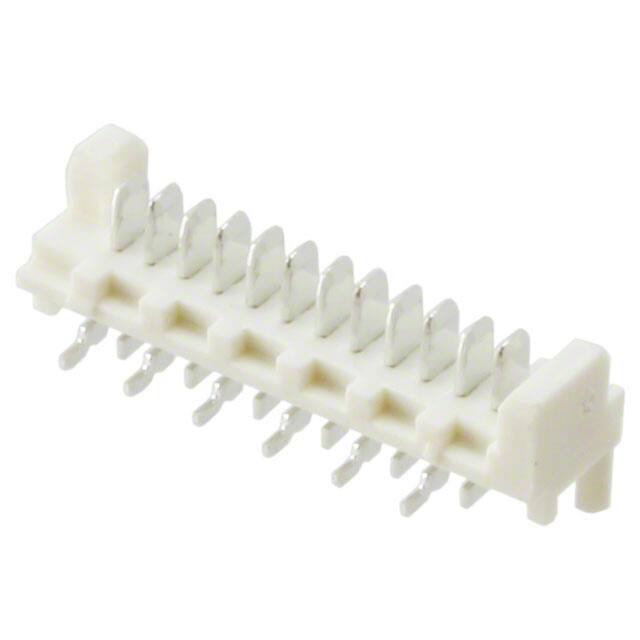

0908140712

Specifications

Maks. Çalışma Sıcaklığı

105°C

Reference Standard

UL

Contact Materials

Cartridge Brass

Durability

30 Cycles

Pcb Contact Pattern

STAGGERED

Contact Type

Male Blade

Number Of Positions Loaded

All

Withdrawl Forcemin

.2502 N

Dielectric Withstanding Voltage

750VAC V

Uzunluk

19.02mm

Ambalaj

Tape & Reel (TR)

Mating Contact Pitch

0.05 inch

Shrouding

Shrouded - 2 Wall

Min. Çalışma Sıcaklığı

-40°C

Housing Material

Nylon

Max Voltage Rating Ac

250V

Seri

Picoflex PF-50 90814

Insulation Color

Natural

Contact Shape

Rectangular

Sıra Sayısı

1

Nem Hassasiyeti (MSL)

1 (Unlimited)

Depth

6.9mm

Number Of Circuits

10

Number Of Pcb Rows

2

Contact Finish Mating

Tin

Fabrika Tedarik Süresi

30 Weeks

HTS Kodu

8536.69.40.40

ECCN Kodu

EAR99

Current Rating Amps

1.2A

Applications

Automotive, General Purpose, Industrial, Medical

Montaj Tipi

Surface Mount

Terminal Adımı

2.54mm

RoHS Durumu

ROHS3 Compliant

Parça Durumu

Active

Insulation Materials

Polyamide (PA), Nylon, Glass Filled

Material Flammability Rating

UL94 V-0

Reliability

COMMERCIAL

Orientation

Vertical

Number Of Conductors

ONE

Akım Değeri

2.4A
