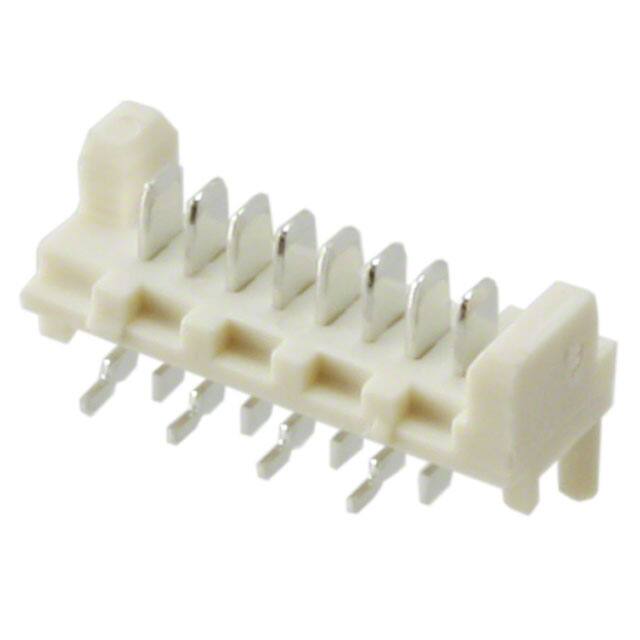

0908140708

Specifications

Maks. Çalışma Sıcaklığı

105°C

Reference Standard

UL

Withdrawl Forcemin

.2502 N

Radyasyon Dayanımı

No

Pcb Contact Pattern

STAGGERED

Contact Type

Male Blade

Number Of Positions Loaded

All

Contact Materials

Cartridge Brass

Durability

30 Cycles

Dielectric Withstanding Voltage

750VAC V

Uzunluk

13.94mm

Min. Çalışma Sıcaklığı

-40°C

Shrouding

Shrouded - 2 Wall

Mating Contact Pitch

0.05 inch

Ambalaj

Tape & Reel (TR)

Seri

Picoflex PF-50 90814

Insulation Color

Natural

Max Voltage Rating Ac

250V

Housing Material

Nylon

Sıra Sayısı

1

Nem Hassasiyeti (MSL)

1 (Unlimited)

Contact Shape

Rectangular

Number Of Pcb Rows

2

Number Of Circuits

6

Depth

6.9mm

Current Rating Amps

1.2A

Fabrika Tedarik Süresi

30 Weeks

Contact Finish Mating

Tin

Terminal Adımı

2.54mm

Montaj Tipi

Surface Mount

Applications

Automotive, General Purpose, Industrial, Medical

Material Flammability Rating

UL94 V-0

Insulation Materials

Polyamide (PA), Nylon, Glass Filled

RoHS Durumu

ROHS3 Compliant

Parça Durumu

Active

Akım Değeri

2.4A

Polarization Key

POLARIZING PEG

Number Of Conductors

ONE

Reliability

COMMERCIAL

Orientation

Vertical
