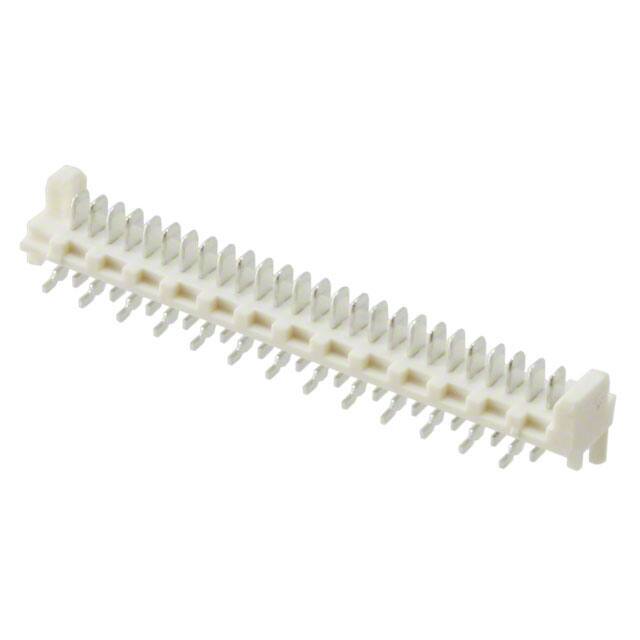

0908140626

Specifications

Kurşunsuz Kodu

yes

Number Of Circuits

24

Depth

6.9mm

Number Of Pcb Rows

2

Contact Shape

Rectangular

Nem Hassasiyeti (MSL)

1 (Unlimited)

Sıra Sayısı

1

Additional Feature

POLARIZED

Housing Material

Nylon

Max Voltage Rating Ac

250V

Insulation Color

Natural

Seri

Picoflex PF-50 90814

Mixed Contacts

NO

Ambalaj

Bulk

Mating Contact Pitch

0.05 inch

Shrouding

Shrouded - 2 Wall

Min. Çalışma Sıcaklığı

-40°C

Uzunluk

36.8mm

Dielectric Withstanding Voltage

750VAC V

Durability

30 Cycles

Contact Materials

Cartridge Brass

Number Of Positions Loaded

All

Contact Type

Male Blade

Pcb Contact Pattern

STAGGERED

Din Conformance

NO

Radyasyon Dayanımı

No

Withdrawl Forcemin

.2502 N

Reference Standard

UL

Maks. Çalışma Sıcaklığı

105°C

Total Number Of Contacts

26

Contact Lengthmating

0.085 2.15mm

Connector Type

Header

Montaj

Surface Mount

Style

Board to Cable/Wire

Contact Finish Thickness Mating

118.1μin 3.00μm

Iec Conformance

NO

Contact Resistance

15mOhm

Fastening Type

Push-Pull

Pitch Mating

0.050 1.27mm

Insulation Height

0.161 4.10mm
