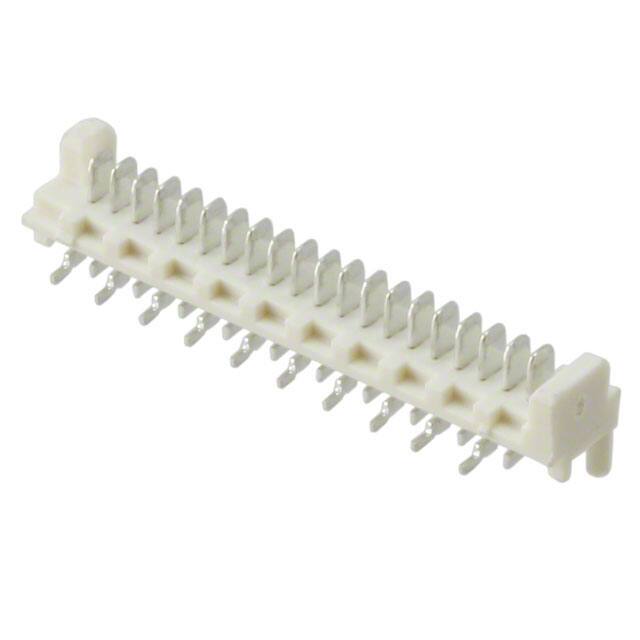

0908140620

Specifications

Contact Lengthmating

0.085 2.15mm

Total Number Of Contacts

20

Contact Finish Thickness Mating

118.1μin 3.00μm

Style

Board to Cable/Wire

Montaj

Surface Mount

Connector Type

Header

Insulation Height

0.161 4.10mm

Pitch Mating

0.050 1.27mm

Contact Resistance

15mOhm

Fastening Type

Push-Pull

Iec Conformance

NO

Terminal

Solder

Pozisyon Sayısı

20

Housing Color

Beige

Akım Değeri

2.4A

Filter Feature

NO

Polarization Key

POLARIZING PEG

Mil Conformance

NO

Ul Flammability Code

94V-0

Number Of Conductors

ONE

Reliability

COMMERCIAL

Orientation

Vertical

Material Flammability Rating

UL94 V-0

Insulation Materials

Polyamide (PA), Nylon, Glass Filled

Parça Durumu

Obsolete

RoHS Durumu

ROHS3 Compliant

Montaj Tipi

Surface Mount

Applications

Automotive, General Purpose, Industrial, Medical

Current Rating Amps

1.2A

Contact Finish Mating

Tin

Number Of Pcb Rows

2

Depth

6.9mm

Number Of Circuits

18

Kurşunsuz Kodu

yes

Additional Feature

POLARIZED

Sıra Sayısı

1

Nem Hassasiyeti (MSL)

1 (Unlimited)

Contact Shape

Rectangular

Seri

Picoflex PF-50 90814

Insulation Color

Natural
