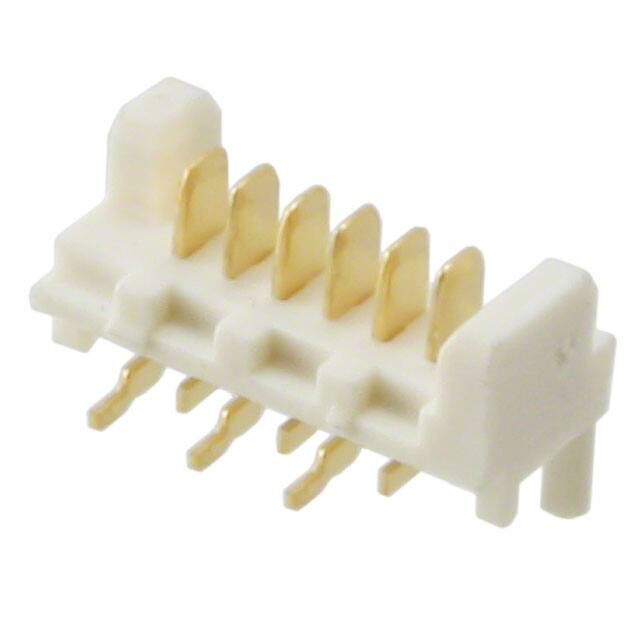

0908140506

Specifications

Nominal Gerilim

250V

Fastening Type

Push-Pull

Iec Conformance

NO

Insulation Height

0.252 6.40mm

Pitch Mating

0.050 1.27mm

JESD-609 Kodu

e3

Terminal

Solder

Pozisyon Sayısı

6

Board Mounting Option

PEG

Total Number Of Contacts

6

Contact Lengthmating

0.085 2.15mm

Connector Type

Header

Style

Board to Cable/Wire

Contact Finish Thickness Mating

118.1μin 3.00μm

Applications

Automotive, General Purpose, Industrial, Medical

Montaj Tipi

Surface Mount

Fabrika Tedarik Süresi

30 Weeks

Contact Finish Mating

Tin

Body Length Or Diameter

0.449 inch

Current Rating Amps

1.2A

ECCN Kodu

EAR99

Reliability

COMMERCIAL

Filter Feature

NO

Polarization Key

POLARIZING PEG

Ul Flammability Code

94V-0

Mil Conformance

NO

Number Of Conductors

ONE

Insulation Materials

Polyamide (PA), Nylon, Glass Filled

Parça Durumu

Active

RoHS Durumu

ROHS3 Compliant

Material Flammability Rating

UL94 V-0

Seri

Picoflex PF-50 90814

Insulation Color

Natural

Mating Contact Pitch

0.05 inch

Mounting Option1

LOCKING

Ambalaj

Bulk

Mixed Contacts

NO

Shrouding

Shrouded - 2 Wall

Kurşunsuz Kodu

yes

Number Of Pcb Rows

2
