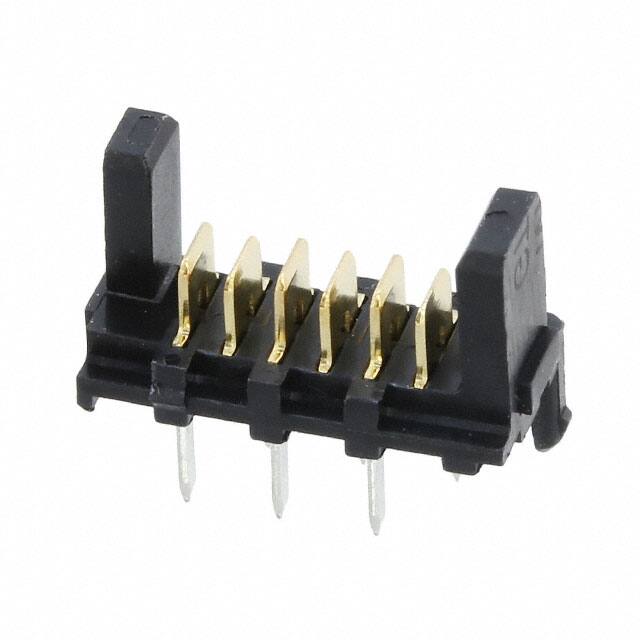

0903253006

Specifications

Ambalaj

Bulk

Ul Flammability Code

94V-0

Connector Type

Header

Style

Board to Cable/Wire

Insulation Color

Black

Contact Type

Male Blade

Contact Length Post

0.130 3.30mm

Applications

Automotive, General Purpose, Industrial, Medical

ECCN Kodu

EAR99

Number Of Positions Loaded

All

Nem Hassasiyeti (MSL)

1 (Unlimited)

Insulation Materials

Polybutylene Terephthalate (PBT), Glass Filled

Seri

Picoflex PF-50 90325

Iec Conformance

NO

Montaj Tipi

Through Hole

Mil Conformance

NO

Additional Feature

LOW PROFILE, POLARIZED

Contact Materials

Brass

Nominal Gerilim

250V

Kurşunsuz Kodu

yes

Din Conformance

NO

Insulation Height

0.252 6.40mm

Terminal

Solder

Fabrika Tedarik Süresi

32 Weeks

Sıra Sayısı

1

Material Flammability Rating

UL94 V-0

Çalışma Sıcaklığı

-40°C~105°C

Parça Durumu

Active

Mixed Contacts

NO

Mating Information

MULTIPLE MATING PARTS AVAILABLE

Fastening Type

Push-Pull

RoHS Durumu

ROHS3 Compliant

Shrouding

Shrouded - 2 Wall

Contact Shape

Rectangular

Contact Finish Mating

Palladium-Nickel

Pitch Mating

0.050 1.27mm

Özellikler

Board Lock

Contact Finish Thickness Mating

24.0μin 0.61μm

Current Rating Amps

1.2A

Pozisyon Sayısı

6
