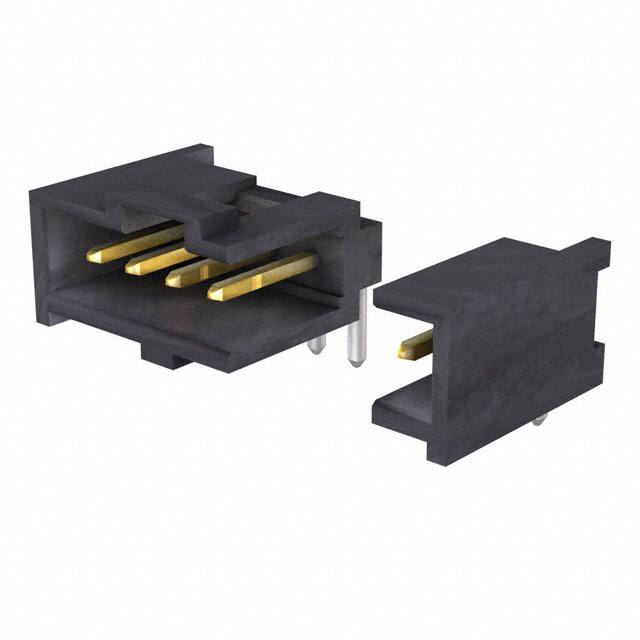

0901362310

Specifications

Contact Type

Male Pin

Housing Color

Black

Contact Shape

Square

Renk

Black

Orientation

Right Angle

Contact Lengthmating

0.266 6.75mm

Shrouding

Shrouded - 4 Wall

Sıra Sayısı

1

Akım Değeri

3A

Pozisyon Sayısı

10

RoHS Durumu

ROHS3 Compliant

Connector Type

Header

Uzunluk

28.75mm

Fastening Type

Latch Holder

Insulation Color

Black

Insulation Height

0.284 7.21mm

Montaj

Through Hole

Contact Finish Post

Tin

Material Flammability Rating

UL94 V-0

Montaj Tipi

Through Hole, Right Angle

Pitch

2.54mm

Pitch Mating

0.100 2.54mm

Contact Finish Mating

Gold

Seri

C-Grid III 90136

Ambalaj

Tray

Contact Finish Thickness Mating

30.0μin 0.76μm

Maks. Çalışma Sıcaklığı

125°C

Number Of Circuits

9

Style

Board to Cable/Wire

Terminal

Solder

Contact Length Post

0.114 2.90mm

Contact Resistance

20mOhm

Number Of Contacts

10

Min. Çalışma Sıcaklığı

-55°C

Contact Finish Thickness Post

118.1μin 3.00μm

Insulation Materials

Polyester, Glass Filled

Parça Durumu

Active

Contact Plating

Gold

Applications

Automotive, General Purpose

Depth

10.9mm
