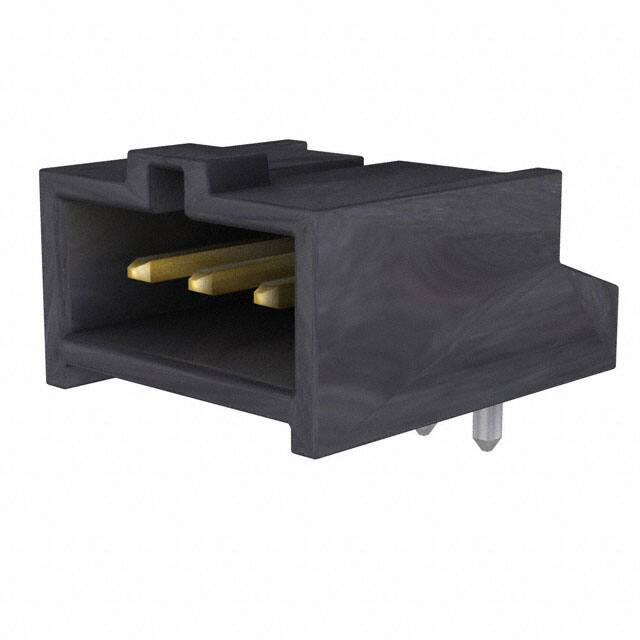

0901362303

Specifications

Contact Finish Thickness Mating

30.0μin 0.76μm

Ambalaj

Tray

Seri

C-Grid III 90136

Contact Finish Mating

Gold

Pitch Mating

0.100 2.54mm

Mil Conformance

NO

Additional Feature

C-GRID III, POLARIZED

Min. Çalışma Sıcaklığı

-55°C

Filter Feature

NO

Contact Length Post

0.114 2.90mm

Terminal

Solder

Style

Board to Cable/Wire

Number Of Circuits

2

Maks. Çalışma Sıcaklığı

125°C

Applications

Automotive, General Purpose

Parça Durumu

Active

Insulation Materials

Polyester, Glass Filled

Contact Finish Thickness Post

118.1μin 3.00μm

Contact Materials

Brass

Number Of Positions Loaded

All

Housing Material

Polyester

Nem Hassasiyeti (MSL)

1 (Unlimited)

Max Voltage Rating Ac

350V

Mixed Contacts

NO

Iec Conformance

NO

Housing Color

Black

Contact Shape

Square

Contact Type

Male Pin

Kurşunsuz Kodu

yes

Pozisyon Sayısı

3

Sıra Sayısı

1

Shrouding

Shrouded - 4 Wall

Contact Lengthmating

0.266 6.75mm

Orientation

Right Angle

Montaj

Through Hole

Insulation Height

0.284 7.21mm

Ul Flammability Code

94V-0

Fastening Type

Latch Holder

Uzunluk

10.97mm

Connector Type

Header
