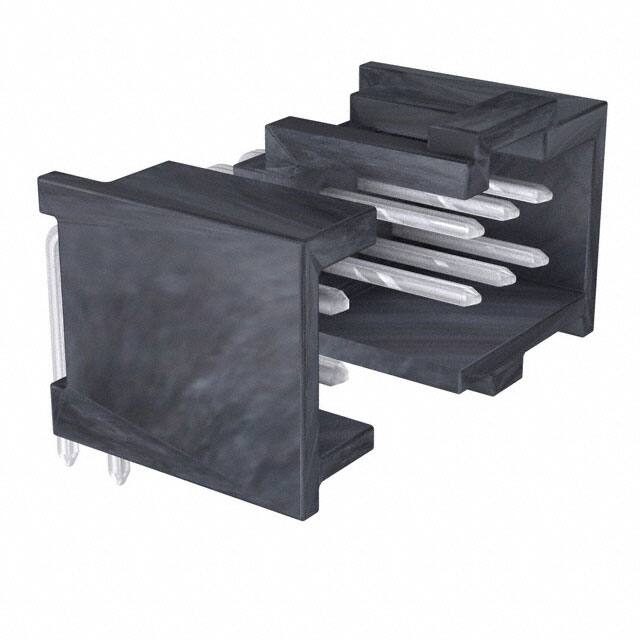

0901303122

Specifications

Shrouding

Shrouded - 4 Wall

Contact Lengthmating

0.266 6.75mm

Orientation

Right Angle

Sıra Sayısı

2

Akım Değeri

3A

Pozisyon Sayısı

22

Contact Shape

Square

Housing Color

Black

Contact Type

Male Pin

Renk

Black

Max Voltage Rating Ac

350V

Contact Finish Post

Tin

Montaj Tipi

Through Hole, Right Angle

Pitch

2.54mm

Material Flammability Rating

UL94 V-0

Uzunluk

30.66mm

Connector Type

Header

RoHS Durumu

ROHS3 Compliant

Insulation Color

Black

Fastening Type

Latch Holder

Insulation Height

0.384 9.75mm

Montaj

Through Hole

Contact Length Post

0.114 2.90mm

Terminal

Solder

Style

Board to Cable/Wire

Number Of Circuits

20

Maks. Çalışma Sıcaklığı

125°C

Min. Çalışma Sıcaklığı

-55°C

Pitch Mating

0.100 2.54mm

Seri

C-Grid III 90130

Contact Finish Mating

Tin

Ambalaj

Tray

Contact Finish Thickness Mating

118.1μin 3.00μm

Nem Hassasiyeti (MSL)

1 (Unlimited)

Housing Material

Polyester

Contact Materials

Brass

Number Of Positions Loaded

All

Row Spacing Mating

0.100 (2.54mm)

Parça Durumu

Active

Insulation Materials

Polyester, Glass Filled
