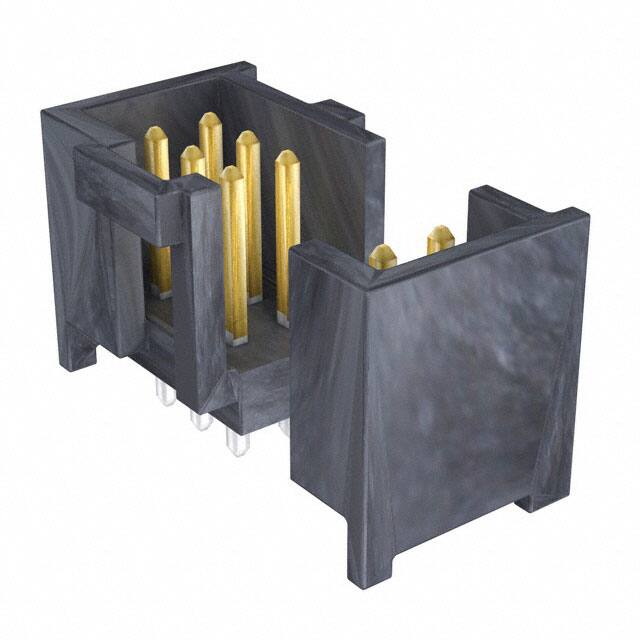

0901301244

Specifications

Sıra Sayısı

2

Orientation

Vertical

Contact Lengthmating

0.266 6.75mm

Shrouding

Shrouded - 4 Wall

Pozisyon Sayısı

44

Kurşunsuz Kodu

yes

Akım Değeri

3A

Contact Type

Male Pin

Housing Color

Black

Contact Shape

Square

Max Voltage Rating Ac

350V

Contact Finish Post

Tin

Material Flammability Rating

UL94 V-0

Montaj Tipi

Through Hole

Uzunluk

58.6mm

Connector Type

Header

RoHS Durumu

ROHS3 Compliant

Montaj

Through Hole

Insulation Height

0.429 10.90mm

Fastening Type

Latch Holder

Maks. Çalışma Sıcaklığı

125°C

Fabrika Tedarik Süresi

15 Weeks

Contact Length Post

0.114 2.90mm

Terminal

Solder

Style

Board to Cable/Wire

Number Of Circuits

40

Min. Çalışma Sıcaklığı

-55°C

Overall Contact Length

0.510 12.95mm

Contact Finish Mating

Gold

Seri

C-Grid III 90130

Pitch Mating

0.100 2.54mm

Contact Finish Thickness Mating

15.0μin 0.38μm

Ambalaj

Tray

Depth

9.75mm

Housing Material

Polyester

Nem Hassasiyeti (MSL)

1 (Unlimited)

Row Spacing Mating

0.100 (2.54mm)

Contact Materials

Brass

Number Of Positions Loaded

All

Parça Durumu

Active
