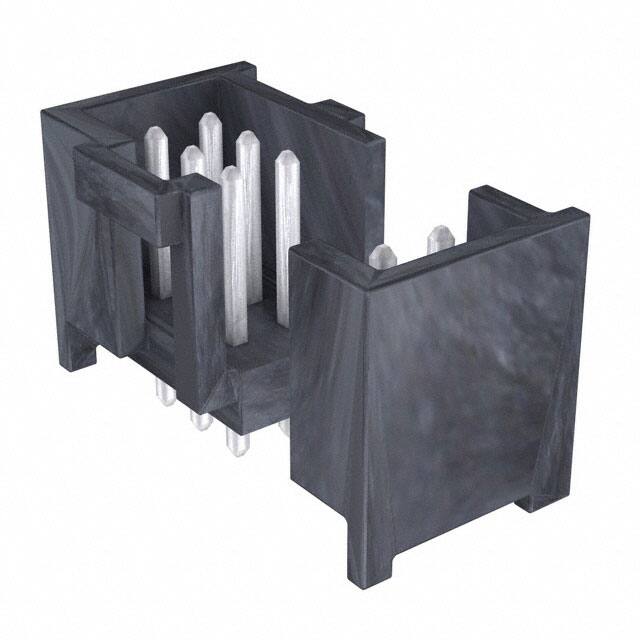

0901301138

Specifications

Contact Lengthmating

0.266 6.75mm

Shrouding

Shrouded - 4 Wall

Orientation

Vertical

Sıra Sayısı

2

Akım Değeri

3A

Pozisyon Sayısı

38

Housing Color

Black

Contact Shape

Square

Contact Type

Male Pin

Renk

Black

Max Voltage Rating Ac

350V

Contact Finish Post

Tin

Montaj Tipi

Through Hole

Pitch

2.54mm

Material Flammability Rating

UL94 V-0

RoHS Durumu

ROHS3 Compliant

Connector Type

Header

Uzunluk

50.98mm

Insulation Color

Black

Fastening Type

Latch Holder

Insulation Height

0.429 10.90mm

Montaj

Through Hole

Number Of Circuits

34

Style

Board to Cable/Wire

Terminal

Solder

Contact Length Post

0.114 2.90mm

Fabrika Tedarik Süresi

15 Weeks

Maks. Çalışma Sıcaklığı

125°C

Overall Contact Length

0.510 12.95mm

Min. Çalışma Sıcaklığı

-55°C

Pitch Mating

0.100 2.54mm

Seri

C-Grid III 90130

Contact Finish Mating

Tin

Ambalaj

Tray

Contact Finish Thickness Mating

118.1μin 3.00μm

Housing Material

Polyester

Nem Hassasiyeti (MSL)

1 (Unlimited)

Depth

9.75mm

Number Of Positions Loaded

All

Contact Materials

Brass
