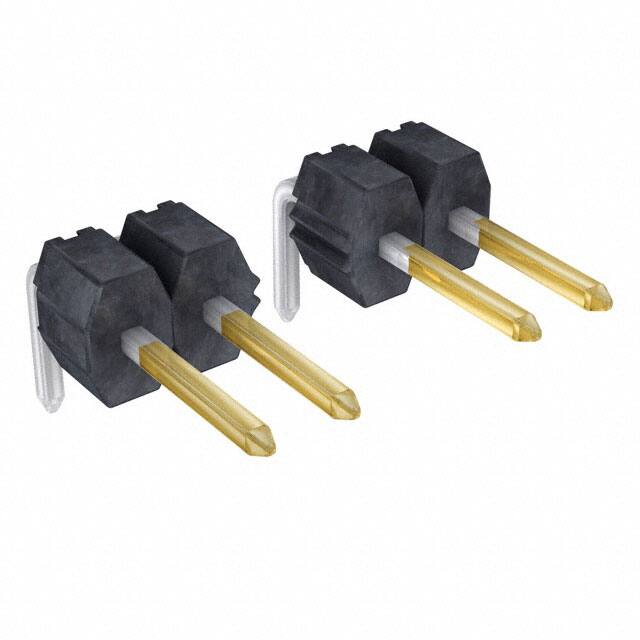

0901210778

Specifications

Number Of Positions Loaded

All

Contact Materials

Brass

Nem Hassasiyeti (MSL)

1 (Unlimited)

Housing Material

Polyester

Depth

11mm

Applications

Automotive, General Purpose

Insulation Materials

Polyester, Glass Filled

Parça Durumu

Active

Contact Finish Thickness Post

118.1μin 3.00μm

Voltage Rated Ac

350V

Min. Çalışma Sıcaklığı

-55°C

Contact Resistance

20mOhm

Number Of Circuits

16

Style

Board to Board or Cable

Terminal

Solder

Contact Length Post

0.114 2.90mm

Fabrika Tedarik Süresi

15 Weeks

Maks. Çalışma Sıcaklığı

125°C

Contact Finish Thickness Mating

15.0μin 0.38μm

Ambalaj

Tray

Seri

C-Grid III 90121

Contact Finish Mating

Gold

Pitch Mating

0.100 2.54mm

Montaj Tipi

Through Hole, Right Angle

Material Flammability Rating

UL94 V-0

Contact Finish Post

Tin

Insulation Resistance

5GOhm

Insulation Height

0.142 3.60mm

Montaj

Through Hole

Fastening Type

Push-Pull

RoHS Durumu

ROHS3 Compliant

Connector Type

Header, Breakaway

Uzunluk

45.72mm

Kurşunsuz Kodu

yes

Pozisyon Sayısı

18

Akım Değeri

3A

Sıra Sayısı

1

Contact Lengthmating

0.266 6.75mm

Shrouding

Unshrouded

Orientation

Right Angle
