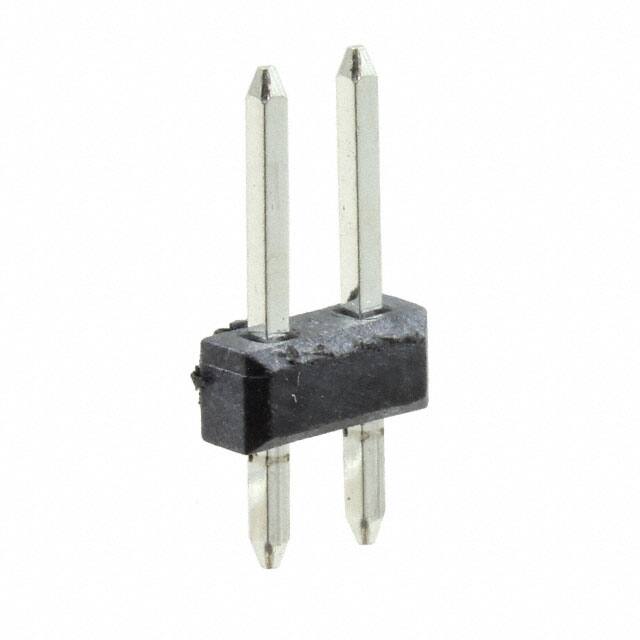

0879140216

Specifications

Din Conformance

NO

Parça Durumu

Active

Pitch

2.54mm

Mating Post Length

5.84mm

Nominal Gerilim

250V

Material Flammability Rating

UL94 V-0

Filter Feature

NO

Seri

C-Grid 87914

Fastening Type

Push-Pull

Insulation Materials

Liquid Crystal Polymer (LCP), Glass Filled

Row Spacing Mating

0.100 (2.54mm)

Number Of Contacts

2

Applications

Automotive, General Purpose, Lighting, Medical, Telecommunications

Contact Gender

Male

Akım Değeri

3A

Contact Plating

Gold

Montaj

Through Hole

Mixed Contacts

NO

Elv

Compliant

Lead Length

2.79mm

Maks. Çalışma Sıcaklığı

105°C

Number Of Positions Loaded

All

Contact Materials

Copper Alloy

Flammability Rating

UL94 V-0

Ul Flammability Code

94V-0

Ambalaj

Tray

RoHS Durumu

ROHS3 Compliant

Contact Finish Thickness Post

100.0μin 2.54μm

Shrouding

Unshrouded

Insulation Height

0.090 2.29mm

Montaj Tipi

Through Hole

Contact Length Post

0.110 2.79mm

Halogen Free

Low Halogen

Overall Contact Length

0.430 10.92mm

Contact Shape

Square

Connector Type

Header, Breakaway

Nem Hassasiyeti (MSL)

1 (Unlimited)

Style

Board to Board or Cable

Iec Conformance

NO

Orientation

Vertical
