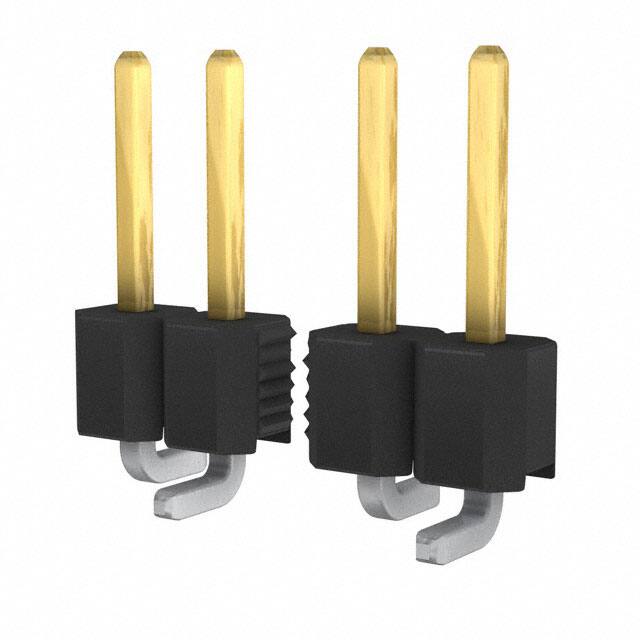

0878980855

Specifications

Shrouding

Unshrouded

Parça Durumu

Active

Pitch

2.54mm

Montaj Tipi

Surface Mount

Insulation Height

0.098 2.50mm

Material Flammability Rating

UL94 V-0

Özellikler

Pick and Place

Pozisyon Sayısı

8

Renk

Black

Connector Type

Header, Breakaway

Insulation Materials

Polyamide (PA), Nylon, Glass Filled

Contact Shape

Square

Fastening Type

Push-Pull

Seri

C-Grid SL 87898

Number Of Contacts

8

Nem Hassasiyeti (MSL)

1 (Unlimited)

Style

Board to Board or Cable

Applications

Automotive, General Purpose, Lighting, Medical, Telecommunications

Pitch Mating

0.100 2.54mm

Montaj

Surface Mount

Contact Plating

Gold

Sıra Sayısı

1

Terminal

Solder

Contact Finish Thickness Mating

30.0μin 0.76μm

Contact Type

Male Pin

Fabrika Tedarik Süresi

10 Weeks

Contact Materials

Copper Alloy

Number Of Positions Loaded

All

Ambalaj

Tape & Reel (TR)

RoHS Durumu

ROHS3 Compliant

Contact Lengthmating

0.230 5.84mm

Contact Finish Post

Tin

Contact Finish Mating

Gold

Insulation Color

Black

Contact Finish Thickness Post

78.7μin 2.00μm
